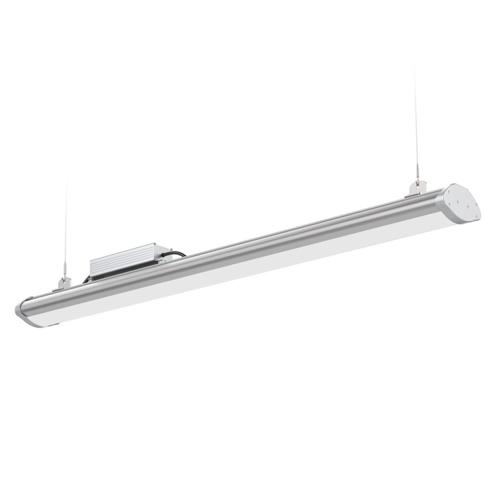

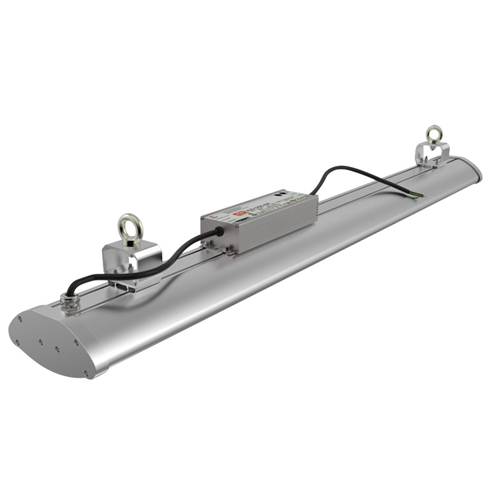

Alumium Linear LED High Bay Light & Low Bay Light, 80W/100W/150W/200W LED Industrial Light, 150LM/W, 100-277V, IP65 IK10

  • Length: 2FT 3FT 4FT 5FT
  • Wattages: 80W 100W 150W 200W
  • CCT: 3000k, 4000k, 5000k, 5700k, 6000k, 6500k
  • Main Material: Aluminum + PC
  • Input Voltage: AC100-277V, AC200-240V, 50/60HZ
  • Optional Functions: Microwave, Dimmable, Emergency etc
  • Certificates: ETL, FCC, CE, ROHS, LVD, EMC, SAA, SASO
Linear LED High Bay Specifications
Name General Specifications
Input voltage AC200-240V/AC100-277V 50/60Hz
LED Driver Constant Current LED Driver (CE/TUV/UL or Meanwell)
PF  >0.9
THD <15%
LED Type Lumileds/Samsung/ Epistar SMD LED
Colour Rendering Index  Ra>70
SCDM <5
Colour Temperature 3000K, 4000K, 5000K, 5700K, 6000K, 6500K
Luminous Efficiency  130lm/W (150lm/W available)
Beam Angle 120°
Housing Material Aluminum & Opal PC Cover
Installation  Suspension / Surface mount / Rotating mount
IP & IK Rating  IP65 & IK10
Optional Functions  1-10V | Dali | Microwave Sensor | Photocell | Emergency
Working Temperature  -25℃~50℃
Certificate TUV, SAA, CB, D-Mark, CE, RoHS
Warranty  3-Year or 5-Year
Name Model Wattage Dimension Dimension Weight
80W Linear High Bay SO-HBL-A600-80W 80W 10400LM L600*W134*H54mm 1.5KG
100W Linear High Bay SO-HBL-A600-100W 100W 13000LM L900*W132*H55mm 2.5KG
100W Linear High Bay SO-HBL-A600-100W 100W 13000LM L1200*W132*H55mm 3.5KG
150W Linear High Bay SO-HBL-A600-150W 150W 19500LM L1200*W132*H55mm 3.5KG
150W Linear High Bay SO-HBL-A600-150W 150W 19500LM L1500*W132*H55mm 4.5KG
200W Linear High Bay SO-HBL-A600-200W 200W 26000LM L1500*W132*H55mm 4.5KG
Linear LED High Bay Introduction

SuperONE’s Apollo Series Linear LED High Bay is made of 6063 aluminum alloy as heat sink and opal PC cover as diffuser. Ranging from 80W to 200W, it’s a perfect solution for your commercial, retail and industrial applications including gymnasiums, factories, warehouses & groceries etc. The design is stylish, compact and versatile, making it a great fixture for retrofitting existing fluorescent fixtures or new constructions.

Those Apollo LED slim high bays come with an Ingress Protection of IP65 rating and Impact Protection of IK10, suitable for wet & damp locations with harsh environment. Compared with the traditional round LED High Bay Light, the Linear LED High Bay Light has a bigger illumination area providing higher performance with a slim design, as well as a variety of mounting methods, including surface mount, pendant or suspended installation.

This LED High Bay uses Lumileds/Samsung/Epistar SMD LED with overall luminous flux up to 130lm/W or 150lm/W, which makes it able to replace 1000W HID traditional highbay, saving you hundreds of dollars every year on electricity bill. Our Apollo LED Linear High Bay Light is made of aviation aluminum with compact and thick solid housing, which maximizes the heat dissipation performance and ensures the long-term use of lamps.

SuperONE Lighting is a professional LED Linear High Bay Light manufacturer from Shenzhen, China.  With company philosophy “Driving Innovation, Delivering Value”, SuperONE is committed to delivering top-performing, energy-efficient lighting to customers & partners all over the world.

IP65-Linear-LED-High-Bay-Light-Features

Features

  • 80W-200W LED Linear High Bay & Low Bay Light for industrial application
  • 6063 extruded aluminum alloy with superior heat dissipation
  • Durable opal PC cover for a smoot & soft light distribution
  • Lumileds/Samsung/EpistarSMD LED, LM80, 50000hrs
  • Overall luminous efficacy up to 130LPW / 150LPW
  • 2OZ copper aluminum PCB for best thermal managements
  • Universal 100-277V integral driver with surge protection
  • IP65 & IK10 rating with high shock and vibration resistant
  • Installation: Suspension / Surface mount / Rotating mount
  • 0-10V, PWM, DALI dimming options / Emergency available
  • For Warehouses, Gyms, Super Markets, Public Places.

Applications

  • Warehouse lighting
  • Stadiums lighting
  • Airport hall lighting
  • Billboard lighting
  • Gymnasiums lighting
  • Assembly line lighting
  • Gas station lighting
  • Supermarket lighting
  • Shopping mall lighting
  • Manufacturing facilities lighting
Linear LED High Bay Features
IP65 Aluminum Linear LED High Bay Light Microwave Sensor

Microwave Sensor / Dimming Function

Our LED Linear High Bay is able to incorprate programable motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials. The sensors allow energy savings without compromising comfort. With its signature 3-step dimming function, it is perfect for use in areas that require a light change notice before totally switching off the light. Daylight (on/off) sensor is integrated for maximum energy saving

Emergency Function

LED Linear High Bay with Emergency Backup available. With independant emergency pack, it can be provided 90 min.-180 min. emergency duration light in event of power outage.

IP65 Linear LED High Bay Light Installation

Various Mounting Options

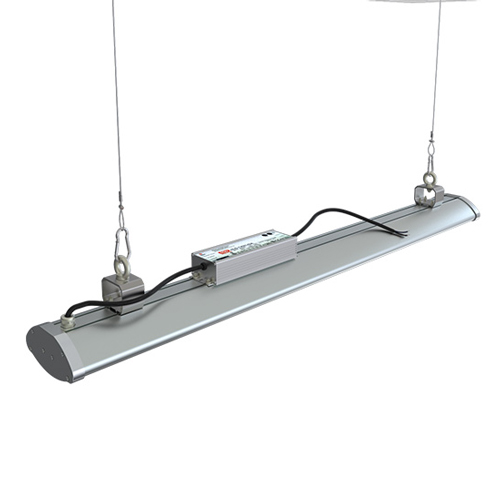

Suspending with suspension wire

Surface mount with bracket

Adjustable mount with rotating bracket

Linear LED High Bay Download
