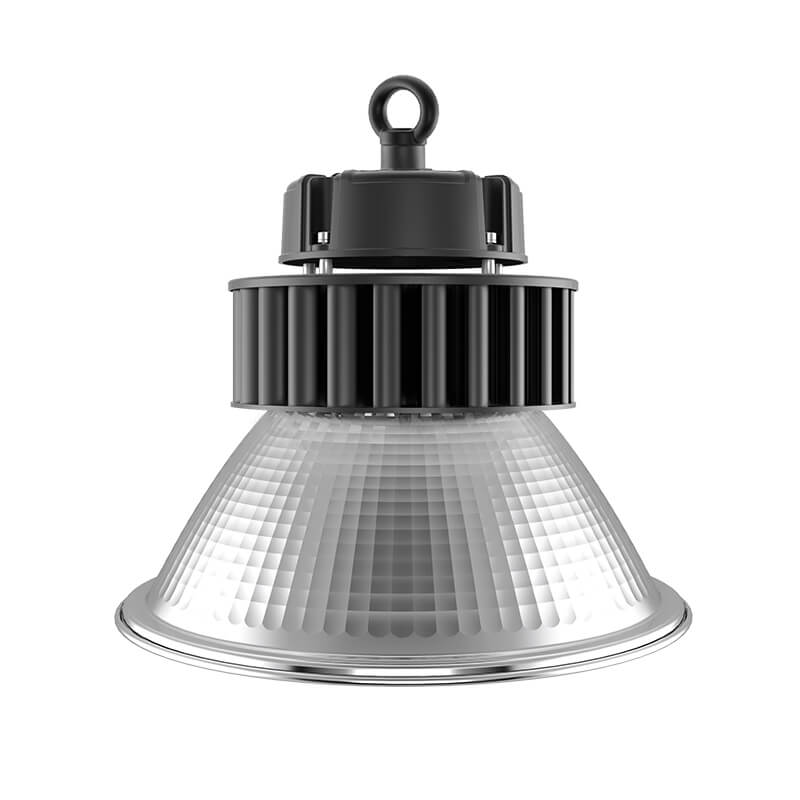

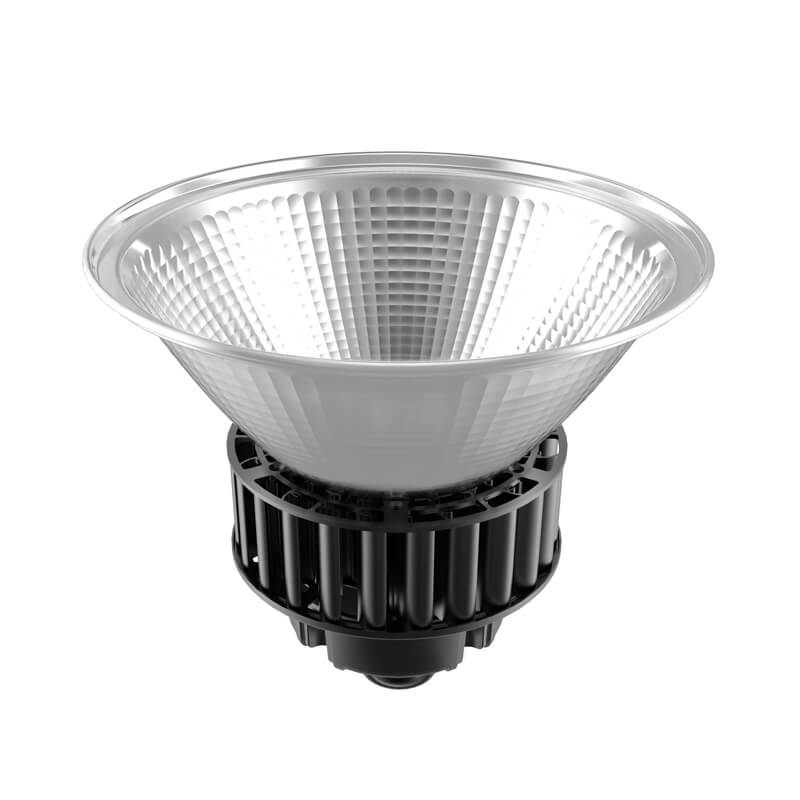

Reflecto Series LED High Bay Lights
60W/100W/150W/200W AC100-277V Meanwell Driver LED Industrial High Bay Lighting with Copper Heat Pipe Built-in and Aluminium Lampshade, Overall Efficacy 120Lumens per Watt, Super Bright Industrial Lighting for Workshop, Warehouse, Stadium, Shipyard, Gas Station & Supermarket Market etc..

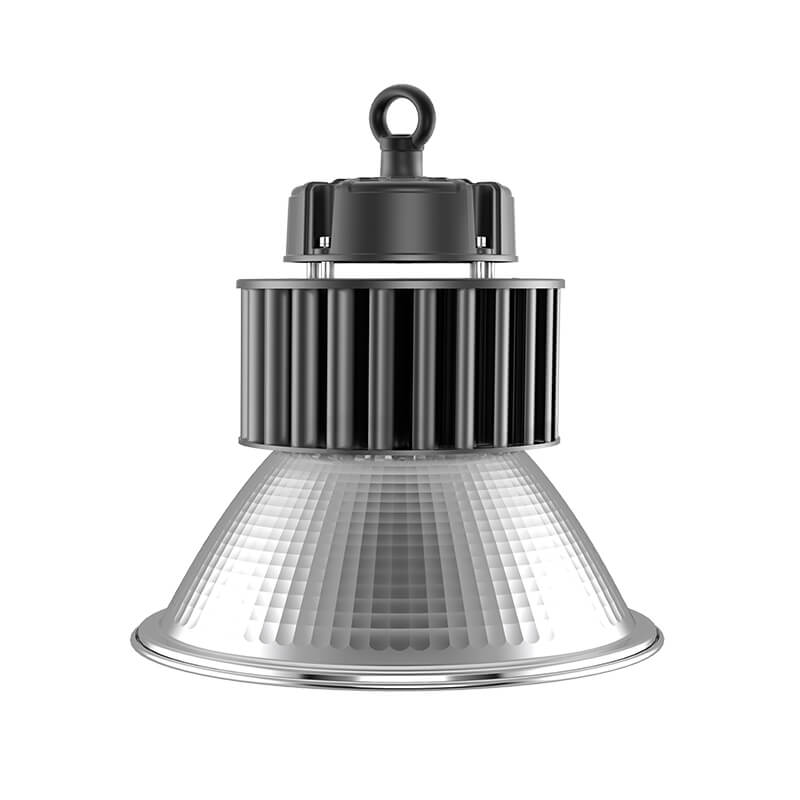

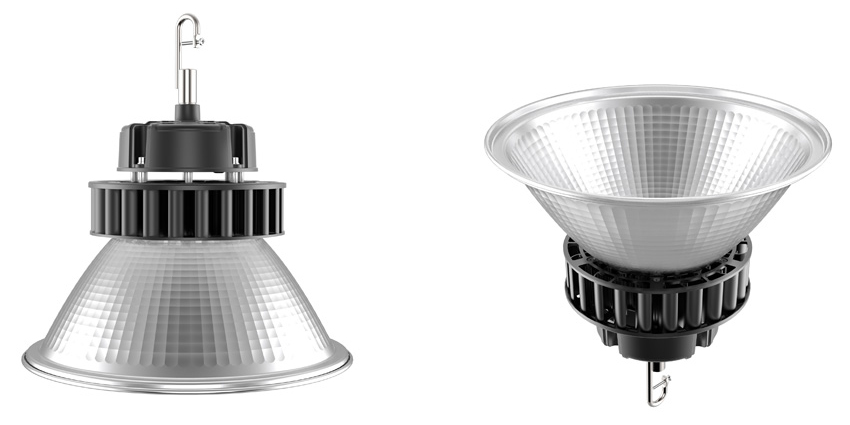

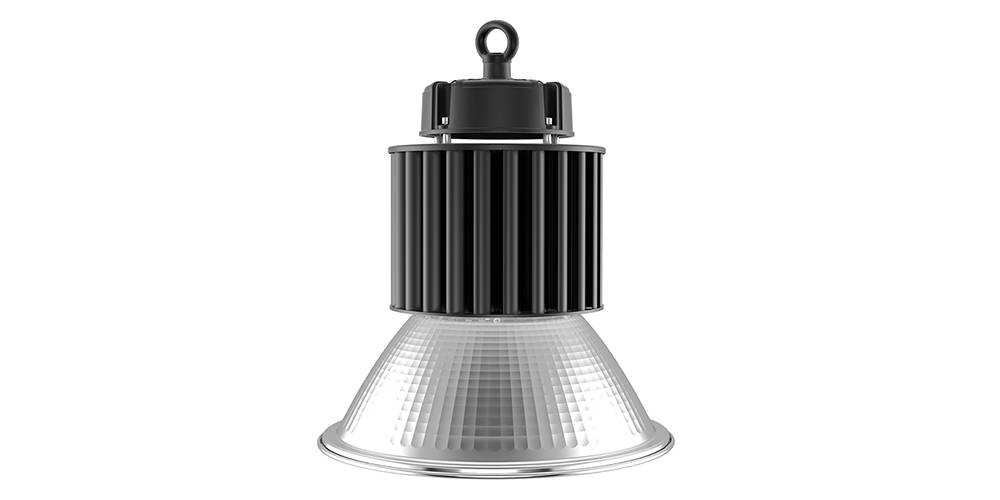

This Reflecto Series LED High Bay Lights are manufactured in a compact and exclusive SuperONE design and are weight and size optimized. They designed with 100W-200W range to replace 250W to 750W HID/MH traditional lamps. By significantly saving more than 50% energy, this LED High Bay is suitable for people in industrial and warehousing applications are constantly looking for ways to reduce the amount of energy required to light their facilities. The luminaire comes with Lumileds SMD LED with LM80 certified, it gives this round LED high bay’s lumious flux efficacy up to 120lm/W as well as ensuring a long lifetime usage. The 200-watt LED High-Bay Light replaces 750-watt metal-halide lights while lasting 3 times longer. The powerful fixture emits 22,000 lumens of cool white light. The heat sink of the high bay is made of high purity aluminum alloy with copper heat-pipe built inside, which quickly transfers heat to the cooling module, and guarantees service life as long as ten years. Below are the main features of our Reflecto LED High Bay Lights:

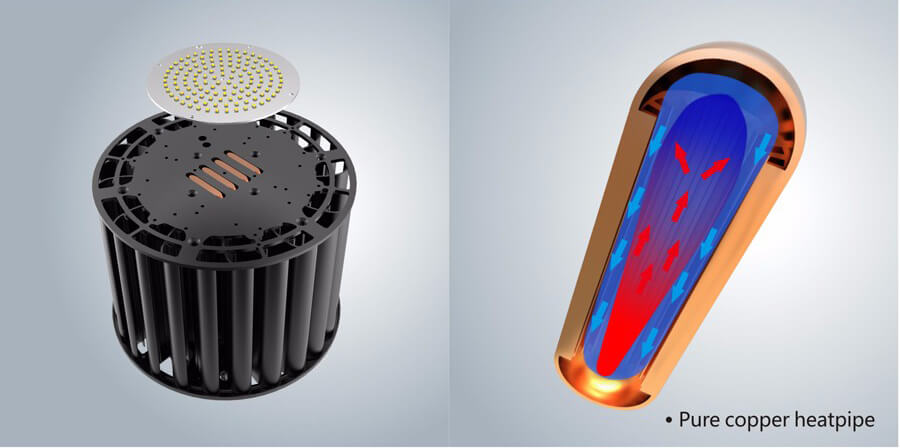

HDT Tecnology LED High Bay Light for Best Heat Dissipation – HDT stands for Heatpipe Direct Touch, which means high efficient cooper heatpipes contact the heat source directly in zero distance, maxima the performance of the heatpipes to reach the cooling effect. Aluminium modular heat sink combines heat-pipes and fins to rapidly and efficiently eliminate heat. The heat generated by the LED is quickly transferred to the cooling module of massive radiation fins, which makes the heat transfer rate over 200 times than that of aluminum radiator, efficiently reducing the temperature of the LED lighting chips and extend the lifespan of the LED high bay light.

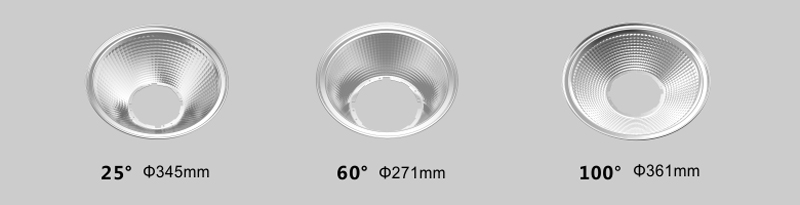

Different Beam Angle Reflectors/Lampshapes – The Reflecto LED High Bay Lights come with three angle (25°/60°/100°) lampshades / reflectors for option. They are made of 1060 high-purity aluminum with anodic oxidation & polishing treatment, greatly improving lighting efficacy and making the illumination distributed more evenly. And the lampshades/reflectors can be dissassmbled & shipped separately, saving at least 50% freight charge under the same cost.

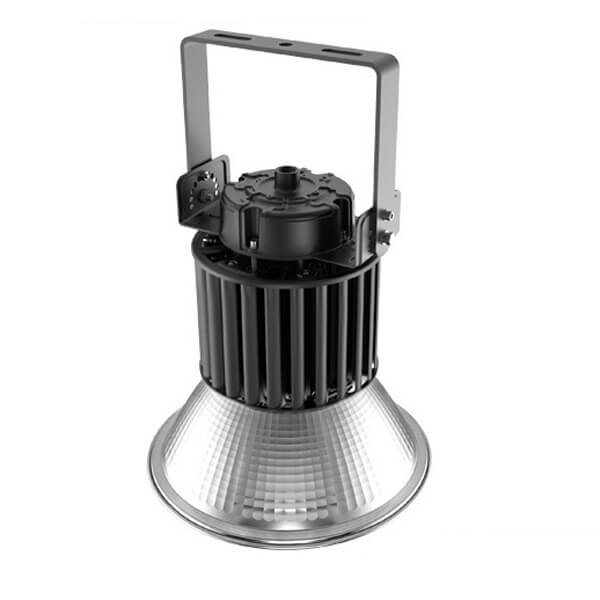

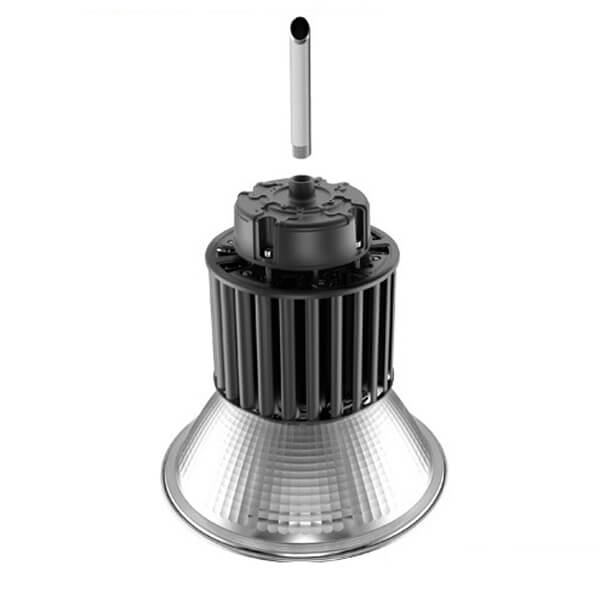

Four Methods for Easy Installation – We offer four different installation methods for the Reflecto LED High Bay Light: Hook Ring for chains; E40 thread base for edision socket; Bracket for adjustable illumination; Tube for fixed installation. All those installation methods make the our LED High Bay suitable for many applications, including low & high profile places as well as flood lighting.

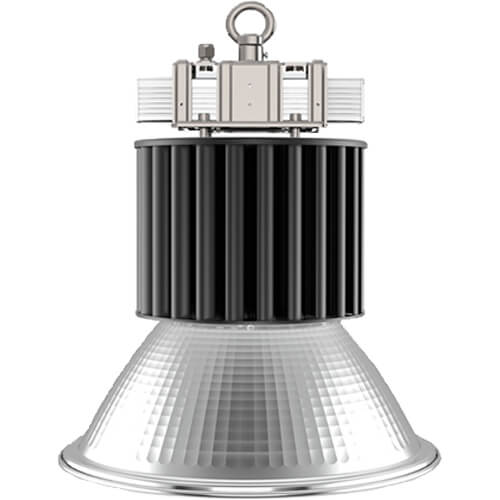

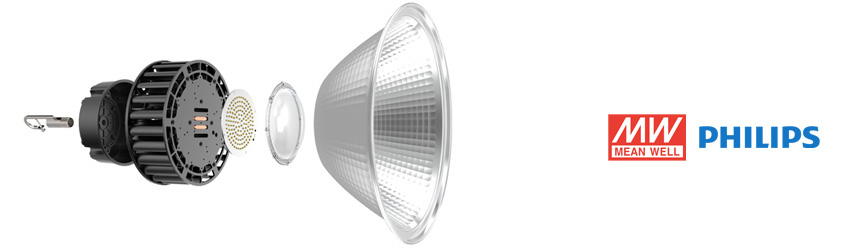

Meanwell Driver & Philips Lumileds SMD LED – Equipped with Mean Well Round or Square LED driver and high output Philips Lumileds LED Chips, the Refleco LED High Bay Light ensures to save on both energy and maintenance costs while meeting the highest performance standards.
LED High Bay Light Benefits | LED High Bay Light Applications |
---|---|
|
|
Model No. | SO-HBK-60W | SO-HBK-100W | SO-HBK-150W | SO-HBK-200W |
---|---|---|---|---|
Input Voltage | AC100-277V 50/60Hz | |||
Output Voltage | DC30-42V | |||
PF | >0.95 | |||
Power Consumption | 60W | 100W | 150W | 200W |
LED | Philips Lumileds 3030 SMD LED | |||
LED Lifetime | >50000 hours | |||
CCT | 3000K/4000K/6000K | |||
CRI | Ra>80 | |||
Lumionous Efficacy | 110-120lm/W | |||
Luminous Flux | 6600-7200lm | 11000-12000lm | 16500-18000lm | 22000-24000lm |
PC Lens | 120° Clear/Frosted | |||
Lampshade | 25°/60°/100° | |||
Main Material | Aluminum + PC Lens + Aluminum Lampshade | |||
Shell Color | Black Heat Radiator | |||
Dimensions | Ø345xH321mm | Ø345xH341mm | Ø345xH371mm | Ø345xH421mm |
Weight | 2.5KG | 3.0KG | 3.6KG | 5.1KG |
IP Rating | IP54 | |||
Mounting | Eyelet / Bracket / E40 / Tube | |||
Working Temperature | -20℃~45℃ | |||
Storage Temperature | -30℃~50℃ | |||
Humidity | 15%-90%RH | |||
Packing | Plain Box | |||
Certification | CE RoHS |
