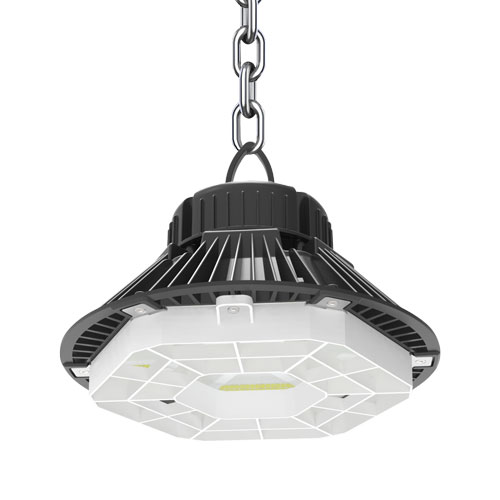

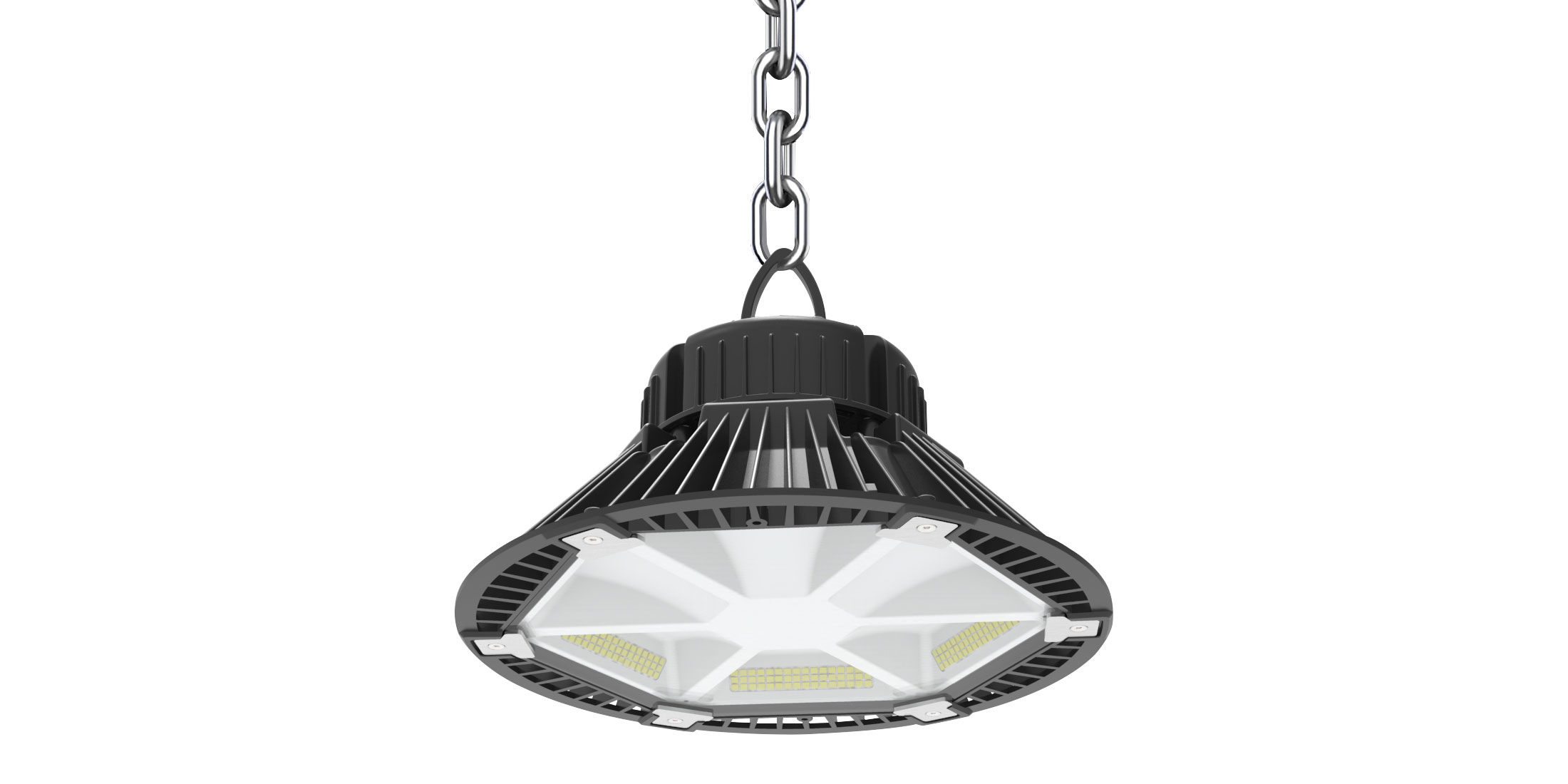

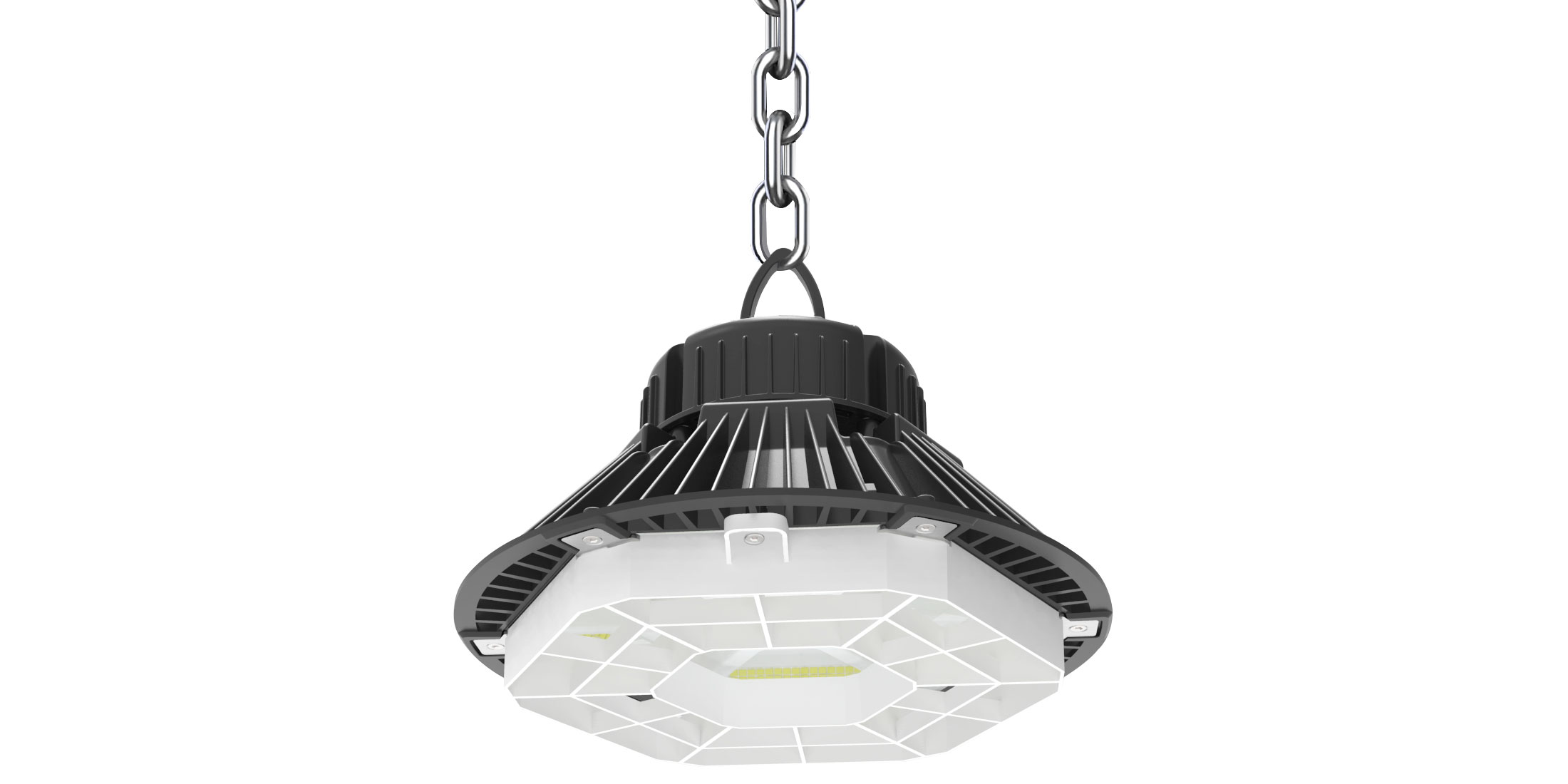

UGR Series UFO LED High Bay Lights
100/150W/200W UGR<19 UFO LED High Bay & Low Bay Lighting with innovative beehive design to control the glare <19, to replace 300-1500W HPS/MH High Bay Equivalent, Ultra Efficient 140-160 Lumens per Watt, IP65 Waterproof Warehouse Lighting for Factory/Shop/Industrial/Commercial Use
Our UGR Series Round Highbay Lights, with innovative beehive design to control the glare <19, aims to emit comfortable light to human eyes. It provides wide, equally distributed light in high-ceiling interior areas such as warehouses, gymnasiums, airports, grocery stores, and other commercial and industrial spaces. They are also built to be suitable for high-temperature areas. We have a variety of options to meet your needs, including 100W, 150W, 200W, 240W and 300W models. We also offer a number of accessories for various mouunting options. Our UGR<19 UFO LED High Bays are perfect for replacing high-intensity discharge (HID) fixtures, resulting in improved visibility and lower energy usage/costs. With a superior performance heat sink, exceptional lumen maintenance, and a rock solid housing, the UGR<19 LED High Bay will last for many years to come. Designed with the highest quality in mind, the UGR Series UFO LED High Bay Light combines high-end components for efficiency and superior constrution quality for reliability. Equipped with high output Philips Lumileds LED Chips and Mean Well LED driver, our LED highbay light ensures you save on both energy and maintenance costs while meeting the highest performance standards. Ranging from 100W-300W, the UGR<19 UFO LED High Bay Light is designed to replace 300W~1500W metal halide lamp for warehouse lighting, sports lighting, workshop lighting, retail lighting, supermarket lighting and gym lighting etc.

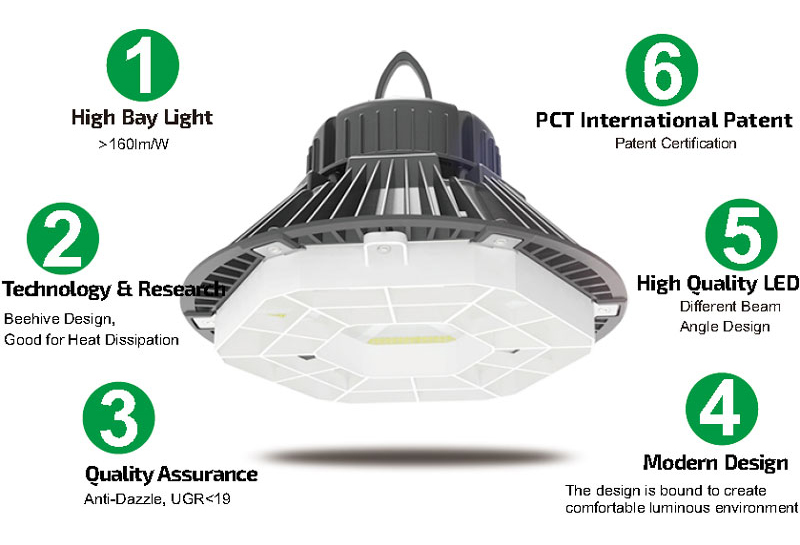

- UGR<19 UFO LED Highbay Light, anti-glare & anti-dazzle design

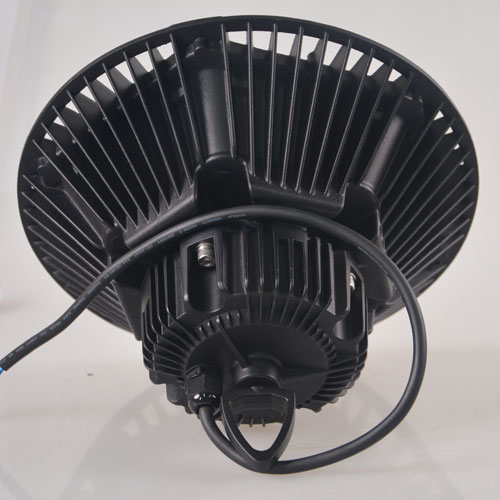

- Compact die-casting alumium heat sink with excellent thermal management
- Unique appearance, strong construction, resistant to impact and seismic activities
- Smooth electrophoresis surface treatment finish with stainless hardware
- Excellent resistance to corrosion, UV degradation and abrasion
- Philips Lumileds Luxeon 3030 LED with high efficacy up to 140Lm/W
- LED Lifetime >50000hrs, CRI>80, 3000k/4000K/5000K/6000K CCT with LM80
- Low Tj for best lumen depreciation and extended life span
- IP67 Meanwell HBG LED Driver with 90~305VAC input and 5 years warranty
- Short circuit, over current, over voltage, over temperature protection
- Integrated thread with eyelet for hook, pendant, or suspension installation
- Optional adjustable yoke bracket for surface mount options
- Various optical design with 60°/90° PC lens and 120° with tempered glass
- IP65 UFO LED highbay suitable for both indoor & outdoor applications
- Dimmable availabe,1~10v, DALI dimmable, PWM signal UFO LED Highbay Light
- 3-step dimming function by motion sensor is available upon request
- CE & RoHS certificates, UL standard available, working worldwide
UFO LED High Bay Light Beam Angle: 60°/90°/120°
UFO LED High Bay Light Microwave Sensor Illustration
LED High Bay Light Benefits | LED High Bay Light Applications |
---|---|
|
|
Model No. | SO-UFO-U100W | SO-UFO-U150W | SO-UFO-U200W |
---|---|---|---|
Input Voltage | AC100-277V 50/60Hz | ||
Output Voltage | DC30-42V | ||
PF | >0.95 | ||
Power Consumption | 100W | 150W | 200W |
LED | Philips 3030 SMD LED | ||
LED Lifetime | >50000 hours | ||
CCT | 3000K/4000K/6000K | ||
CRI | Ra>80 | ||
Lumionous Efficacy | 130-140lm/W (160lm/W availble) | ||
Luminous Flux | 13000-14000lm | 19500-21000lm | 26000-28000lm |
Beam Angle | 90°/120° | ||
Main Material | Aluminum Alloy +PMMA Lens | ||
Shell Color | Black | ||
Dimensions | Ø280xH149mm | Ø320xH158mm | Ø355xH166mm |
Weight | 3.7KG | 4.8KG | 5.2KG |
IP Rating | IP65 | ||
Mounting | Eyelet for chain/ Bracket for surface mount | ||
Working Temperature | -20℃~45℃ | ||
Storage Temperature | -30℃~50℃ | ||
Humidity | 15%-90%RH | ||
Packing | Plain Box | ||
Certification | CE RoHS |
