Modular Series LED Flood Lights

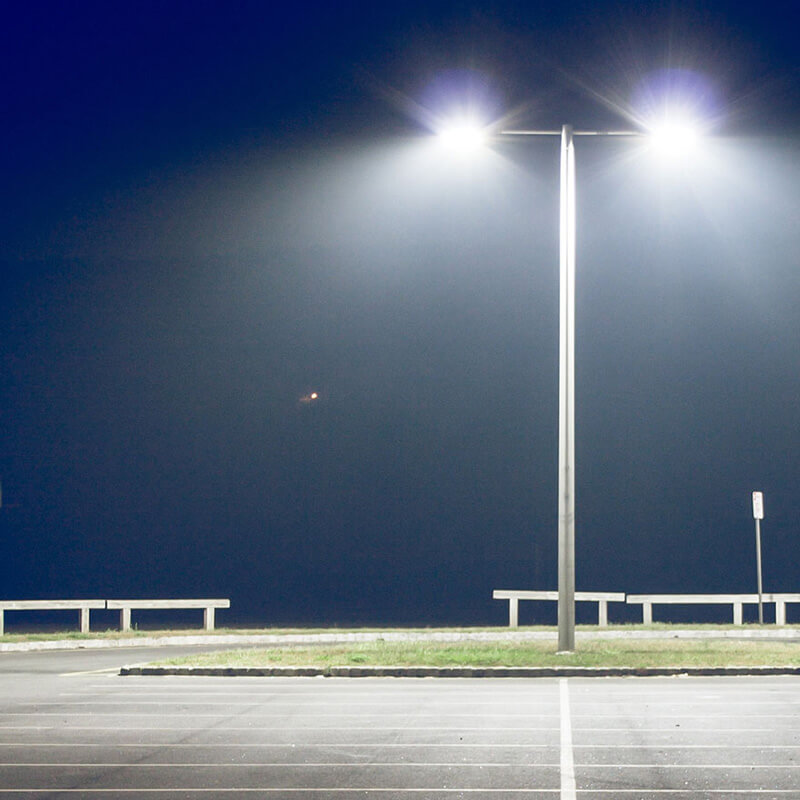

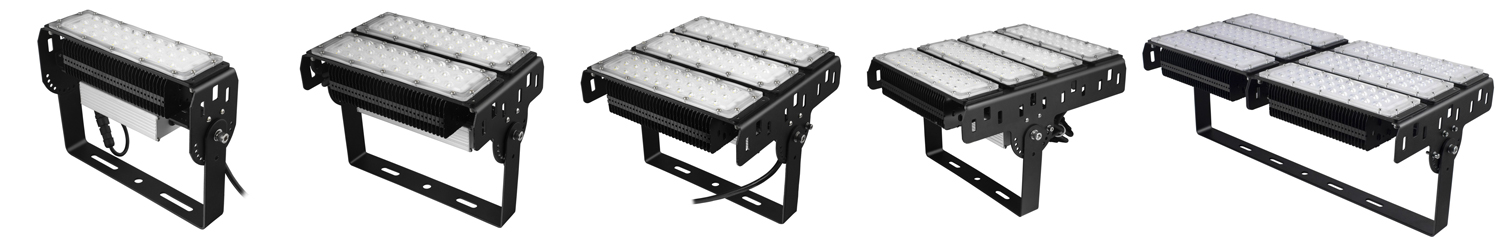

50W/100W/150W/200W/300W AC100-277V Modular LED Tunnel Light & Flood Light & Area Light & Low Bay Light with 120-140lm/W to Replace up to 1000W HID & Halogen Fixtures – IP65 Waterproof Outdoor Lighting – CE RoHS TUV SAA Ctick Certificated- 5 Years Warranty – Stadium Lighting, Sports Field Lighting, Flood Lighting and Parking Lot Lighting.

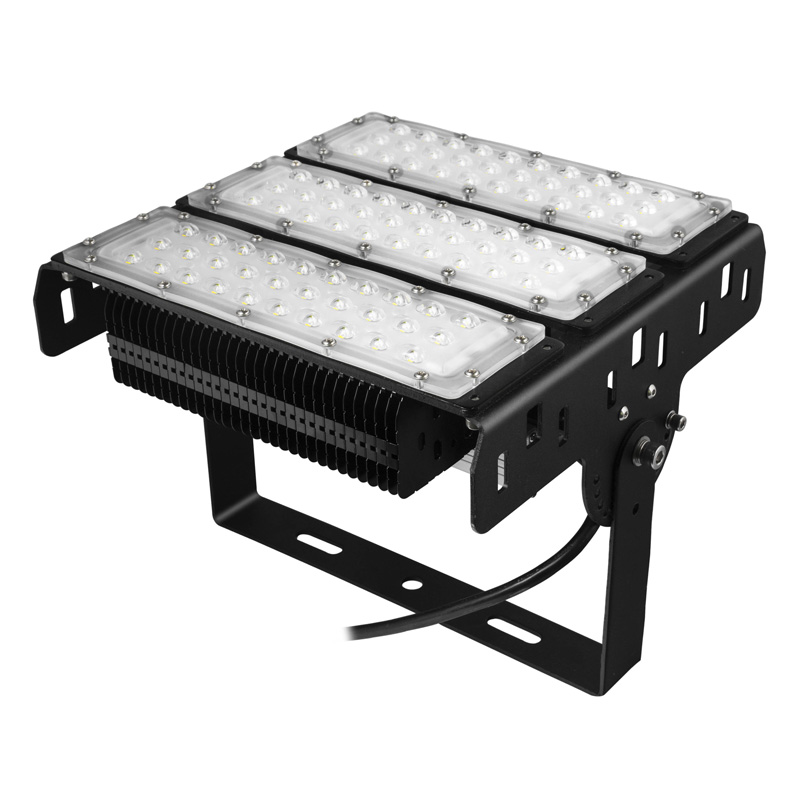

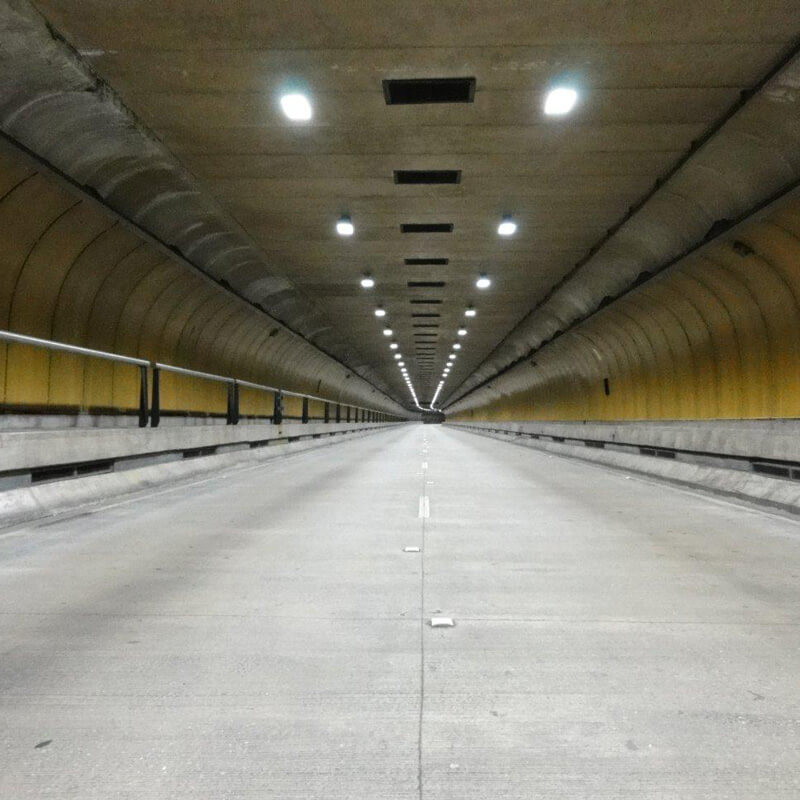

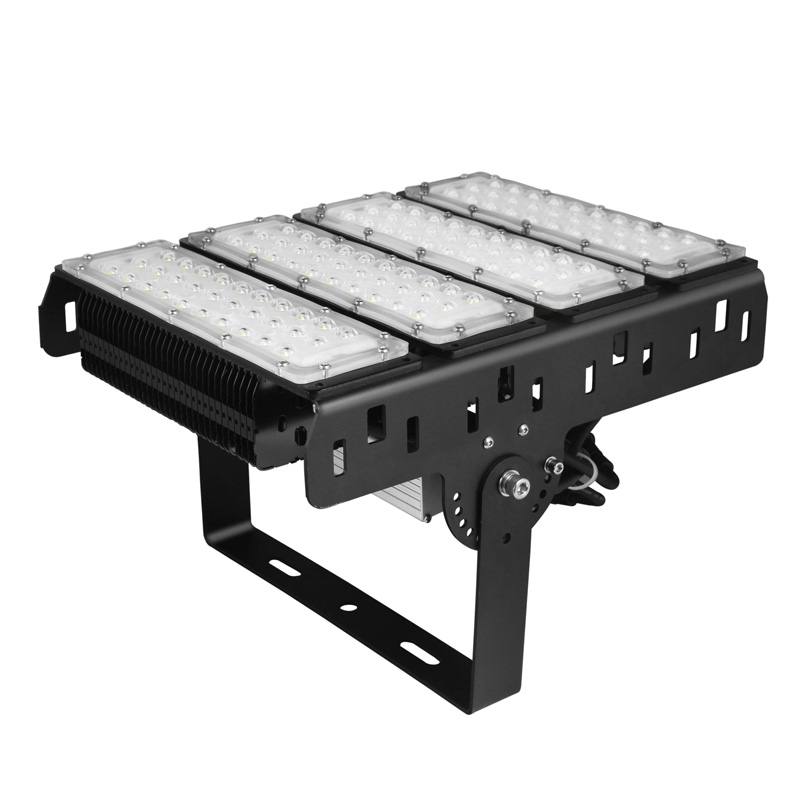

This Modular LED Tunnel Lights are designed as multi-purpose functional lumiaires. Their low profile light weight design and versatile mounting options make it ideal for many applications such as warehouse lighting, garage lighting, tunnel and general area lighting. low bay lighting, canopy lighting etc. They offers a slim style, thermal and optical integrated modular system, multiple options of light distribution, and a wide range installation interface. Available from 50W up to 300W, they are the ideal choice most indoor & outdoor commercial or residential illumination applications. This Modular LED Tunnel Lights feature aluminum fin heat sink with open air modular ventilation design to ensure an excellent heat dissipation ability and optimum efficiency, as well as good anti-corrosion and anti-rust functions.Using Philips Lumileds LED module with anti-glare PMMA lens, making the LED lamp reaches up to 140lm/W with uniform illuminating distribution.
- Flexible power range from 50W/100W/150W/200W/300W

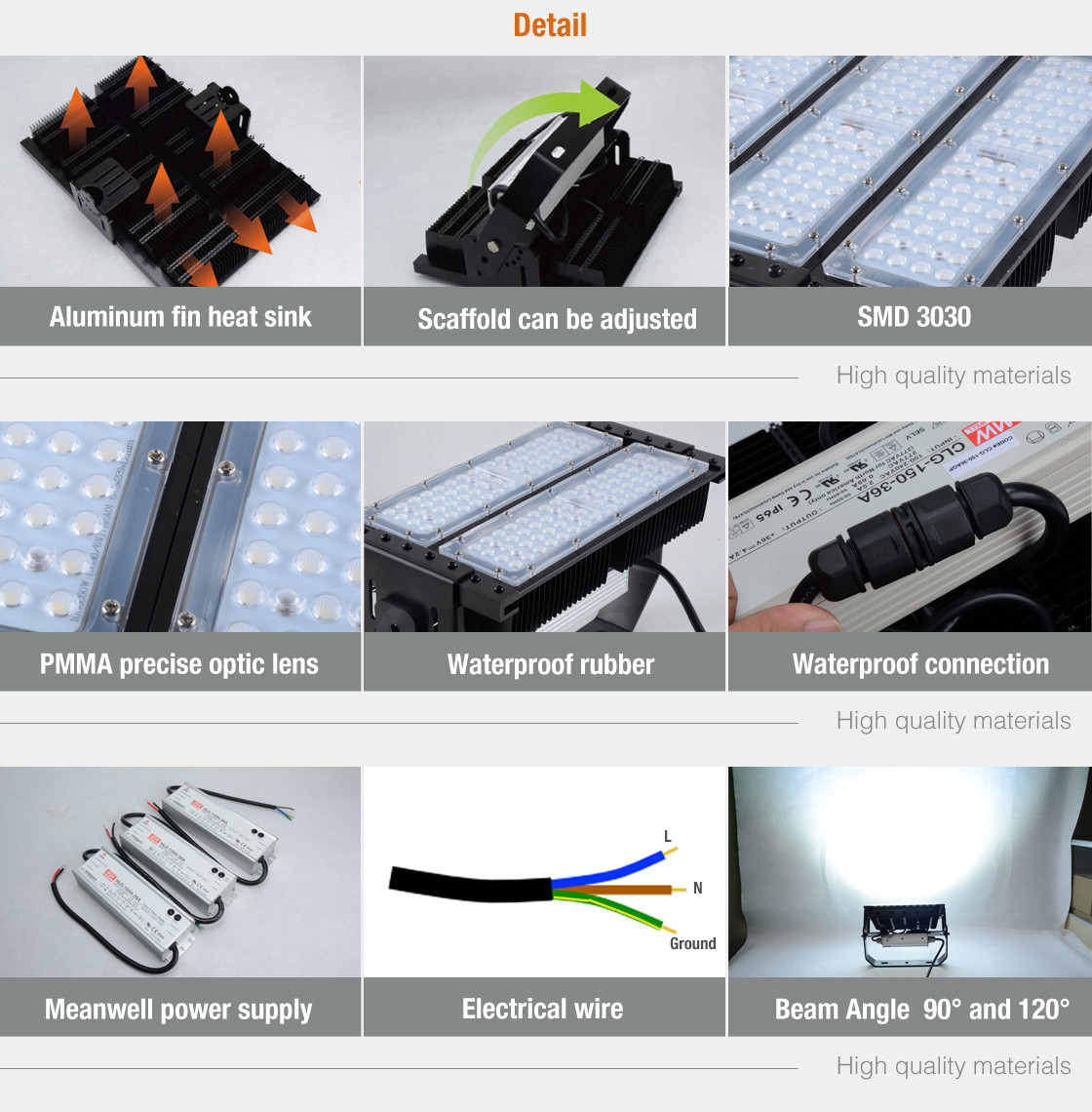

- Heavy grade die-cast aluminum alloy construction built for extreme weather and durability

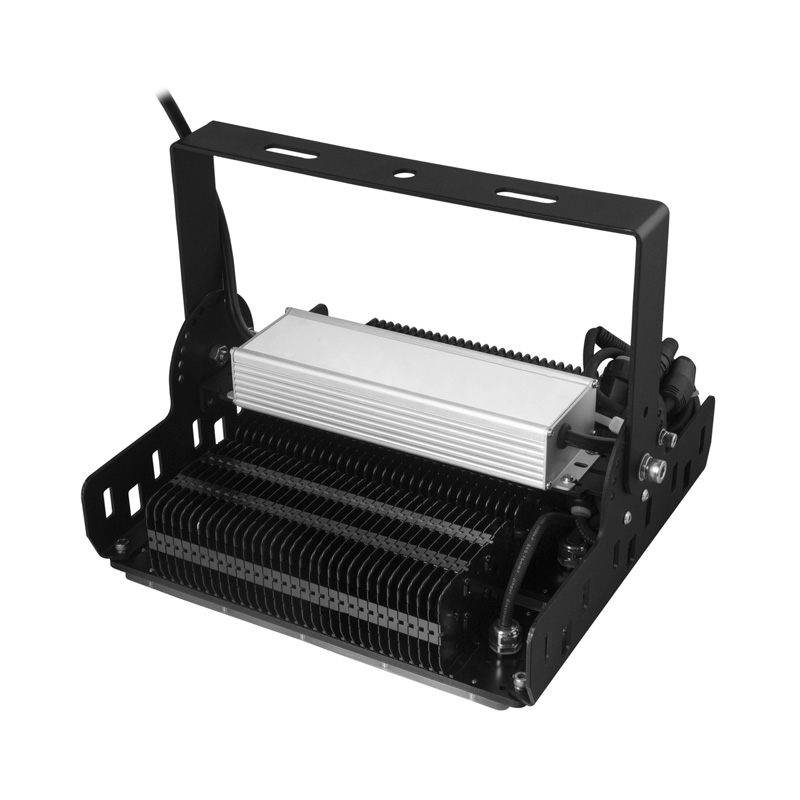

- Aluminum 3D fin heat-sink with fast heat dissipation ability
- Modular design for easy installation, replacement and maintenance
- Open air modular heatsink ventilation design for best possible heat dissipation and optimum efficiency
- Certified according to 1000h salt-spray testing standard ASTM B117 / ISO 9227:2012
- High shock and vibration resistance approved – 2G vibration test IEC 60598-1
- Spaces between modules prevent debris build-up by water-flow self-cleaning
- Original Philips Lumileds SMD LED with 150-160lm/W, LM80 certified
- Overall luminous efficacy reach up to 140lm/W, leading industrial technology
- Various PMMA lens reflectors for accurate beam control and optimal light distribution
- MEANWELL/PHILIPS/MOSO/SOSEN driver options for ultimate quality and long life
- Standard voltage range from 100-277 VAC; 347-480 VAC optional
- High-duty 180 ° adjustable mounting bracket with unique antiskid screws, multi-direction fastening
- IP65 weatherproof, dust-proof, explosion-proof and anti-corrosion, suitable for Indoor and outdoor use
- Dimmable version availabe,1~10V, DALI dimmable, PWM signal modular LED tunnel lights

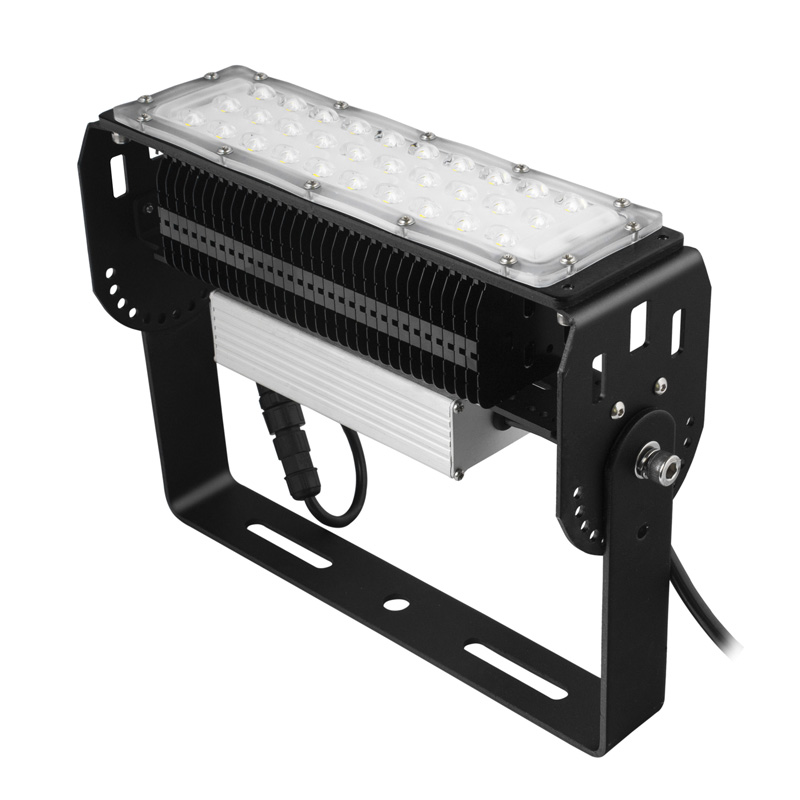

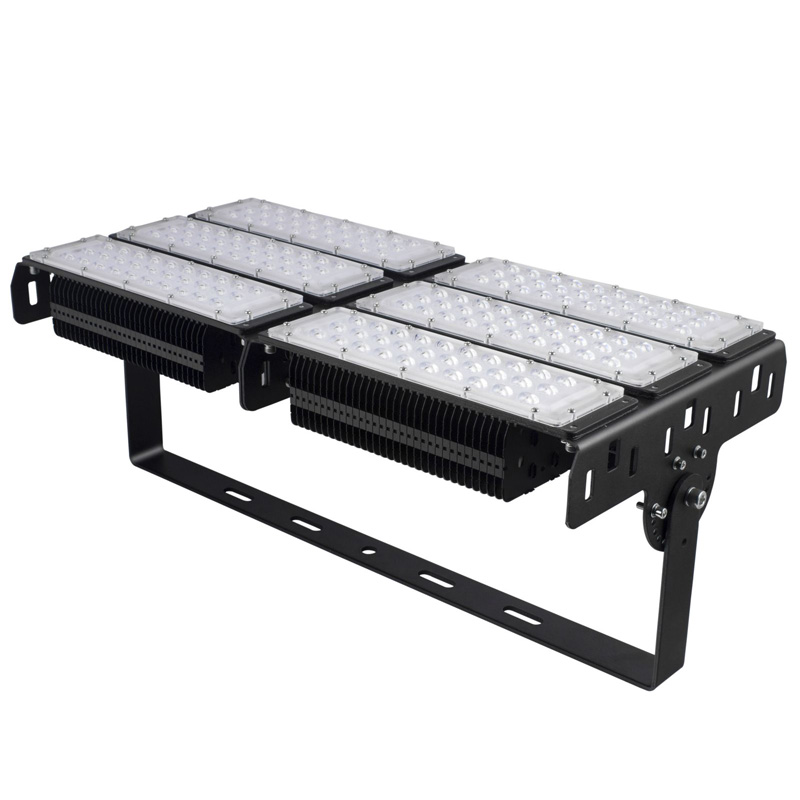

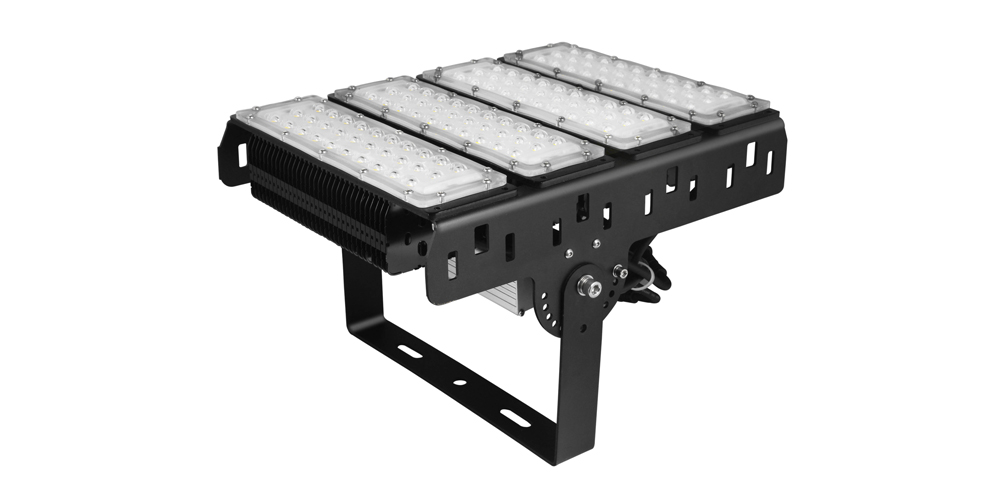

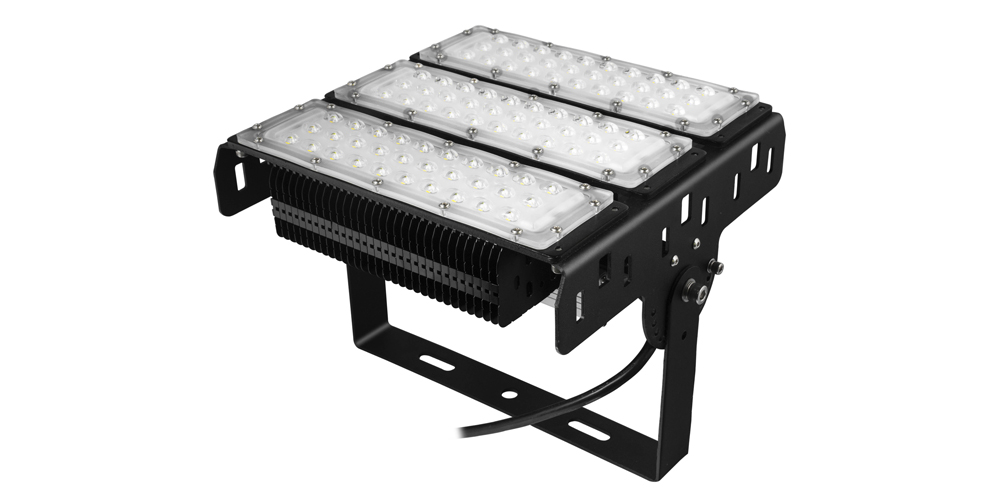

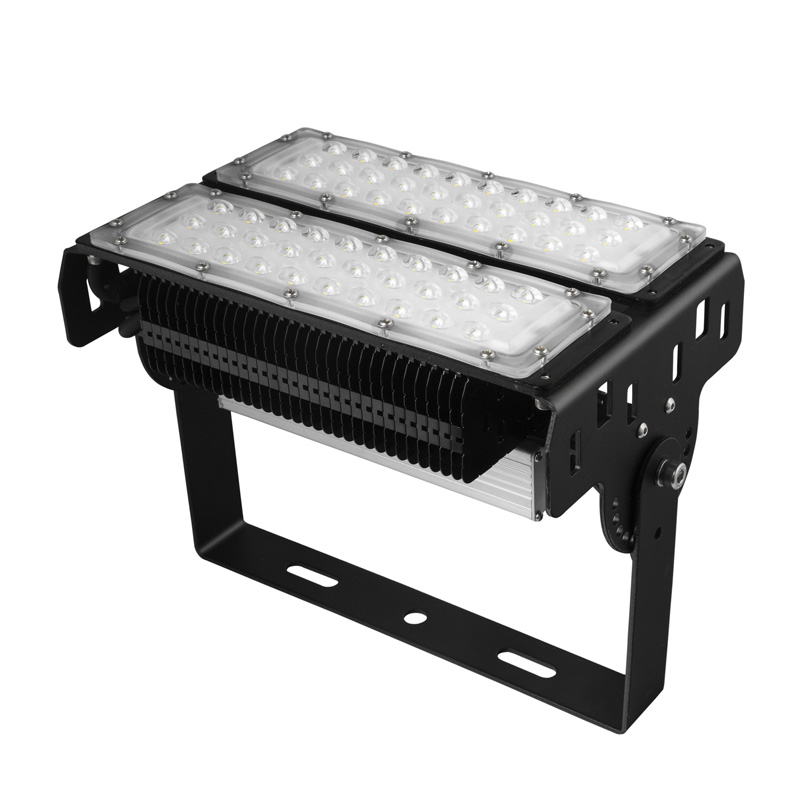

Model No. | SO-FLD-50W | SO-FLD-100W | SO-FLD-150W | SO-FLD-200W | SO-FLD-300W |
---|---|---|---|---|---|
Input Voltage | AC100-277V 50/60Hz | ||||
Output Voltage | DC30-42V | ||||
PF | >0.95 | ||||
Power Consumption | 50W | 100W | 150W | 200W | 300W |
LED | Philips 3030 SMD LED | ||||
LED Lifetime | >50000 hours | ||||
CCT | 3000K/4000K/6000K | ||||
CRI | Ra>80 | ||||
Lumionous Efficacy | 110-120lm/W | ||||
Luminous Flux | 5500-6000lm | 11000-12000lm | 16500-18000lm | 22000-24000lm | 33000-36000lm |
Beam Angle | 60x60°/90x90°/60x150° | ||||
Main Material | Aluminum Alloy + Aluminum Reflector + Tempered Glass | ||||
Shell Color | Black | ||||
Dimensions | 315*90*130mm | 315*130*180mm | 315*130*283mm | 315*130*360mm | 600*320*130mm |
Weight | 2.0KG | 4.7KG | 6.0KG | 7.8KG | 12.3KG |
IP Rating | IP65 | ||||
Mounting | Bracket for surface mount | ||||
Working Temperature | -20℃~45℃ | ||||
Storage Temperature | -30℃~50℃ | ||||
Humidity | 15%-90%RH | ||||
Packing | Plain Box | ||||
Certification | CE RoHS |
