Linkable LED Tri-proof Light 40W 50W 60W 80W 100W with DALI Dimming 0-10V Dimmable IP66 IK08 LED Vapor Tight Light Fixture with Emergency Back-up Built-in

  • 2FT/4FT/5FT/6FT Linear LED Tri-proof Light
  • 600mm/1200mm/1500mm/1800mm/2400mm
  • 20W 30W 40W 60W 80W 100W LED Tri-proof Light
  • 0-10V / Dali / Zigbee Dimming LED Tri-proof Light
  • Microwave Motion Sensor LED Tri-proof Light
  • Emergency LED Tri-proof Light with 1.5H/2H/3H Duration
  • LED Tri-proof Light with CE UL ETL DLC Certified
LED Tri-proof Light Specifications

LED Tri-proof Light Specifications

Name General Specifications
Input voltage AC200-240V / AC100-277V 50/60Hz
LED Driver Constant Current LED Driver (CE/TUV/UL/SAA)
PF  >0.9
THD <15%
LED Type 2835 Lumileds/Epistar SMD LED
Colour Rendering Index  Ra>80
SCDM <5
Colour Temperature 3000K, 4000K, 5000K, 5700K, 6000K, 6500K
Luminous Efficiency 130lm/W
Beam Angle 120°
Housing Material Aluminum Heatsink & PC Cover
Installation Suspension with chain / Surface mount with bracket
IP  IP66
Control Option Motion Sensor
CCT + Power Selectable
Emergency
Working Temperature  -25℃~50℃
Certificate TUV SAA C-Tick CE RoHS CB
Warranty  3-Year or 5-Year
Name Model Wattage Lumen Dimension Weight
20W LED Tri-proof Light SO-TP1-600-20W 20W 2600LM L600*W74*H64mm 0.6KG
30W LED Tri-proof Light SO-TP1-900-30W 30W 3900LM L900*W74*H64mm 1.0KG
40W LED Tri-proof Light SO-TP1-1200-40W 40W 5200LM L1200*W74*H64mm 1.2KG
60W LED Tri-proof Light SO-TP1-1500-60W 60W 7800LM L1500*W74*H64mm 1.4KG
80W LED Tri-proof Light SO-TP1-1500-80W 80W 10400LM L1500*W74*H64mm 1.4KG
80W LED Tri-proof Light SO-TP1-1800-80W 80W 10400LM L1800*W74*H64mm 1.7KG
100W LED Tri-proof Light SO-TP1-2400-100W 100W 13000LM L2400*W74*H64mm 2.3KG
LED Vapor Tight Light Dimension
LED Tri-proof Light Introduction

Linkable LED Tri-proof Light Introduction

SuperONE Lighting now introduces the versatile and high-performance TP01 Linkable LED Tri-proof Light series, featuring a wide range of wattages including 40W, 50W, 60W, 80W, and 100W. Designed to meet the demanding needs of various industrial and commercial applications, these Linkable LED Tri-proof Lights offer exceptional lighting performance with a host of advanced features.

One of the standout features of our LED Tri-proof Lights are the seamless connection capability. With a streamlined design, these fixtures can be easily linked together, allowing for flexible installation options and creating a continuous and uniform lighting experience. Whether you need to illuminate a small space or a large area, the linkable feature ensures effortless scalability. For enhanced control and energy efficiency, our Linkable Tri-proof Lights come with DALI (Digital Addressable Lighting Interface) and 0-10V dimmable options. This allows you to adjust the brightness according to your specific lighting requirements, providing the right illumination levels while optimizing energy consumption.

Durability and protection are key considerations for demanding environments, and our Linkable LED Vapor Tight Lights excel in this aspect. With an IP66 rating, these lights are completely dust-tight and highly resistant to water ingress, making them suitable for both indoor and outdoor applications. Additionally, boasting an IK08 rating, these fixtures offer excellent resistance to impacts and are shatterproof, ensuring longevity and reliability even in rugged working conditions.

For ultimate control and customization, our Linkable LED Vapor Tight Lights are available with dimming options including 0-10V, DALI, and Zigbee compatibility. This allows you to effortlessly adjust the brightness levels according to your preference, enhancing energy efficiency and creating the desired lighting ambiance. Enhancing both energy savings and convenience, select models of our LED Vapor Tight Lights feature a built-in microwave motion sensor. This sensor detects occupancy and movement, automatically adjusting the light output accordingly. This intelligent feature not only optimizes energy consumption but also enhances safety and security by providing illumination exactly when and where it is needed.

In situations where emergency lighting is crucial, we offer LED Tri-proof Lights or Vapor Tight Lights with built-in emergency function. With options for 1.5-hour, 2-hour, and 3-hour duration, these lights ensure reliable illumination during power outages. They are designed and manufactured to meet the highest quality standards. They are CE, UL, ETL, and DLC certified, assuring you of their superior performance, efficiency, and safety. These certifications validate our commitment to providing reliable and compliant lighting solutions.

Experience the superior performance and long-lasting reliability of our LED tri-proof lights. With their seamless connection, dimmable options, IP66 and IK08 ratings, as well as emergency suspended capability, these shatterproof linear fixtures are the ideal lighting solution for a wide range of industrial and commercial applications. Illuminate your space with efficiency, versatility, and peace of mind.

SuperONE Lighting is a professional LED Tri-proof Light manufacturer, factory & supplier from China. With a wide range of sizes, dimming options, motion sensor functionality, emergency capabilities, and prestigious certifications, these lights are the perfect choice for various applications, including industrial, commercial, and public spaces. Illuminate your environment with confidence and efficiency, backed by our commitment to quality and innovation.

  • Hospitals
  • Food storage
  • Hotel
  • Warehouse
  • Factory
  • Assembly line
  • Supermarket
  • Shopping mall
  • Manufacturing facilities
Linkable LED Vapor Tight Light Projects
LED Tri-proof Light Features

Linkable LED Tri-proof Light Features

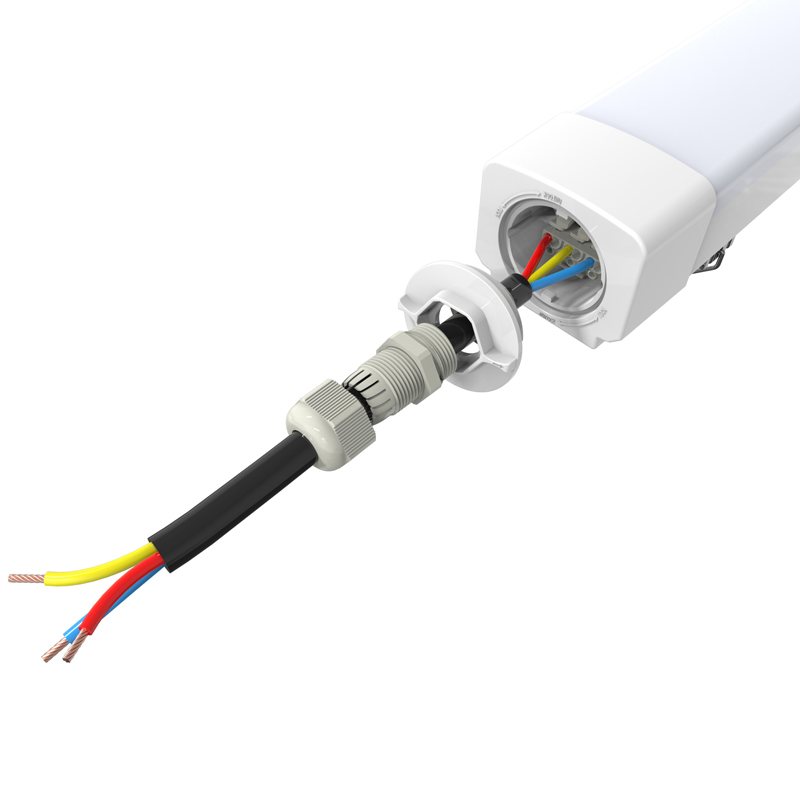

  • Tool-free installation LED tri-proof light
  • High-impact 6063 aluminum alloy shell+ PC diffuser (Clear Strip or Frosted)
  • Anti-surge & lightning up to 2.5KV, and withstand 4KV high voltage
  • Luminous Efficiency:110-120lm/W, 130-140lm/W, and 150-160lm/W for option
  • LED Type: PHILIPS (LUMILEDS) SMD2835 LED
  • LED Driver: PHILIPS Brand led driver.THD<15
  • Certification: Compliance with TUV SAA CE ROHS standard

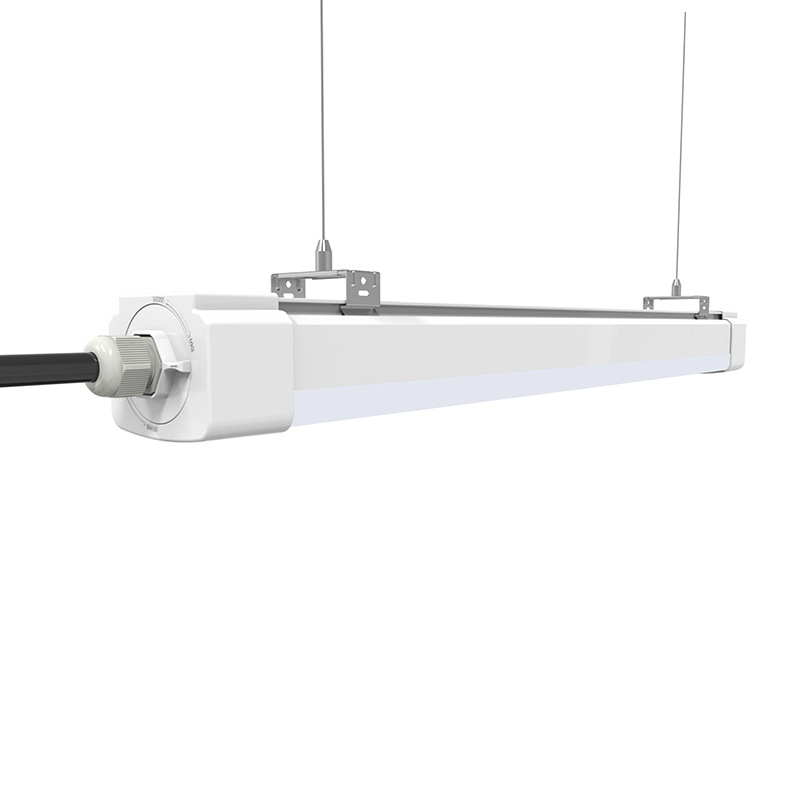

  • Surface mount, Suspended mount, Ajustable Wall Mount, Linkable mount, Celling Mount
  • 3-5 years warranty
