Classic T Series PC LED Vapor Tight Light IP65 IK08 2Ft/4Ft/5Ft Plastic LED Vapor Tight Fixture with Linkable Connection & Tool Free Design, 5 Years Warranty
- 2FT/4FT/5FT LED Vapor Tight Fixtures
- 600mm/1200mm/1500mm LED Vapor Tight Fixtures
- 20W 30W 40W 50W 60W LED Vapor Tight Fixtures
- 0-10V / Dali / Zigbee Dimming LED Vapor Tight Fixtures
- Microwave Motion Sensor LED Vapor Tight Fixtures
- Emergency LED Vapor Tight Light with 1.5H/2H/3H Duration
- LED Vapor Tight Light with CE UL ETL DLC Certified
Classic T Series PC LED Vapor Tight Light Specifications
| Name | General Specifications |
|---|---|
| Input voltage | AC200-240V/AC100-277V 50/60Hz |
| LED Driver | Constant Current LED Driver (CE/TUV/UL or Meanwell) |
| PF | >0.9 |
| THD | <15% |
| LED Type | Lumileds/Samsung/Epistar SMD LED |
| Colour Rendering Index | Ra>80 |
| SCDM | <5 |
| Colour Temperature | 3000K, 4000K, 5000K, 5700K, 6000K, 6500K |
| Luminous Efficiency | 130lm/W (150lm/W available) |
| Beam Angle | 120° |
| Housing Material | PC Base + PC Cover |
| Installation | Suspension / Surface mount |
| IP & IK Rating | IP65 & IK08 |
| Optional Functions | 1-10V | Dali | Microwave Sensor | Photocell | Emergency |
| Working Temperature | -25℃~50℃ |
| Certificate | TUV, SAA, CB, CE, RoHS |
| Warranty | 3-Year or 5-Year |
| Name | Model | Wattage | Dimension | Dimension | Weight |
|---|---|---|---|---|---|
| 20W Vapor Tight Light | SO-TPT-06A20W | 20W | 2400LM | L600*W95*H80mm | 1.2KG |
| 40W Vapor Tight Light | SO-TPT-12A40W | 40W | 4800LM | L1200*W95*H80mm | 2.0KG |
| 50W Vapor Tight Light | SO-TPT-15A50W | 50W | 6000LM | L1500*W95*H80mm | 2.2KG |
| 30W Vapor Tight Light | SO-TPT-06B30W | 30W | 3600LM | L600*W125*H86mm | 1.4KG |
| 40W Vapor Tight Light | SO-TPT-12B40W | 40W | 4800LM | L1200*W125*H86mm | 2.4KG |
| 50W Vapor Tight Light | SO-TPT-12B50W | 50W | 6000LM | L1200*W125*H86mm | 2.4KG |
| 60W Vapor Tight Light | SO-TPT-12B60W | 60W | 7200LM | L1200*W125*H86mm | 2.4KG |
| 60W Vapor Tight Light | SO-TPT-15B60W | 60W | 7200LM | L1500*W125*H86mm | 2.8KG |
| 80W Vapor Tight Light | SO-TPT-15B80W | 80W | 9600LM | L1500*W125*H86mm | 2.8KG |

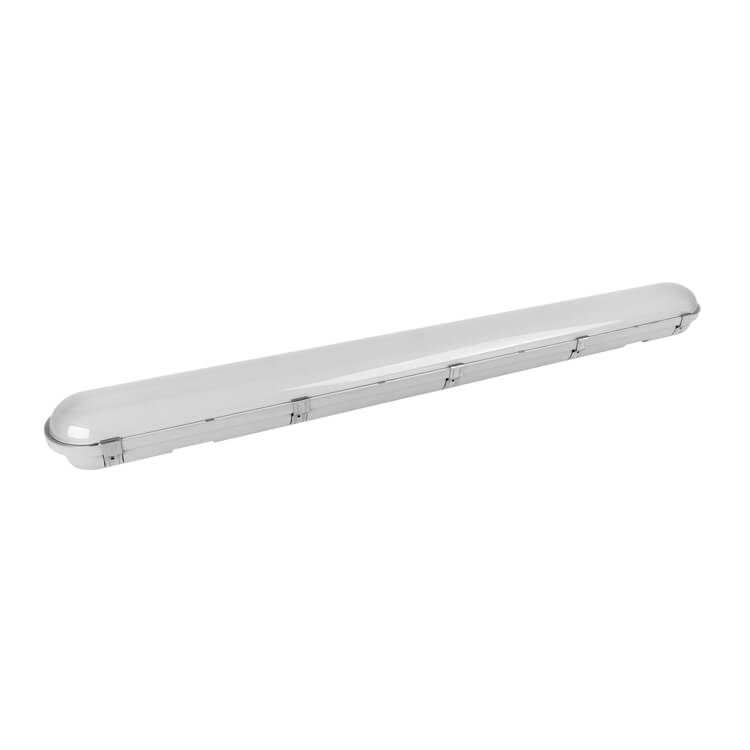

Glassic T Series PC LED Vapor Tight Light Introduction
SuperONE Classic T Series PC LED Vapor Tight Light is similar to traditional tri-proof fixture, with integrated LED module inside upgraded to replace conventional fixture with T8 or T8 CFL tubes. It’s constructed with 94 V2 fireproof PC housing & PC cover, making the overall fireproof rating reaches V0 rating. Our LED vapor tight light is not only with water-proof, dust-proof and corrosion-proof features, but also with perfect impact-resistance & toughness.
With brand 2835 SMD LEDs with LM-80 certified, the fixture is able to last as long as 50000hrs lifetime with 5 years factory warranty. Equipped with PC cover that more than 90% light transmittance, our Classic T Series PC Vapor Tight Light can deliver an overall efficacy up to 130lm/W in warm white and 140lm/W in cool white. The opal PC cover provides a soft & uniform illumination, comfortable to human eyes.

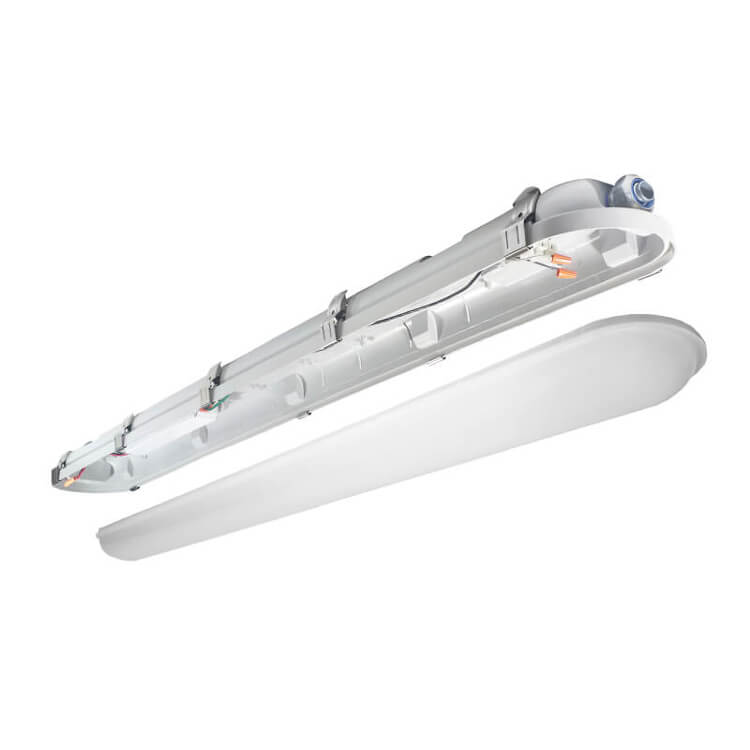

This Classic PC LED Vapor Tight fixture adopts a similar structure as traditional tri-proof fixture with stainless steel buckles, which makes the fixture easily accessible to maintain and repair. These durable industrial battens feature a tough IK08 impact and IP65 rating with secure stainless steels buckles, offering a long-lasting lighting solution to use in even the harshest & roughest locations, such as such as factories, warehouses, car parks, tunnels, terraces… as well as places with moisture.

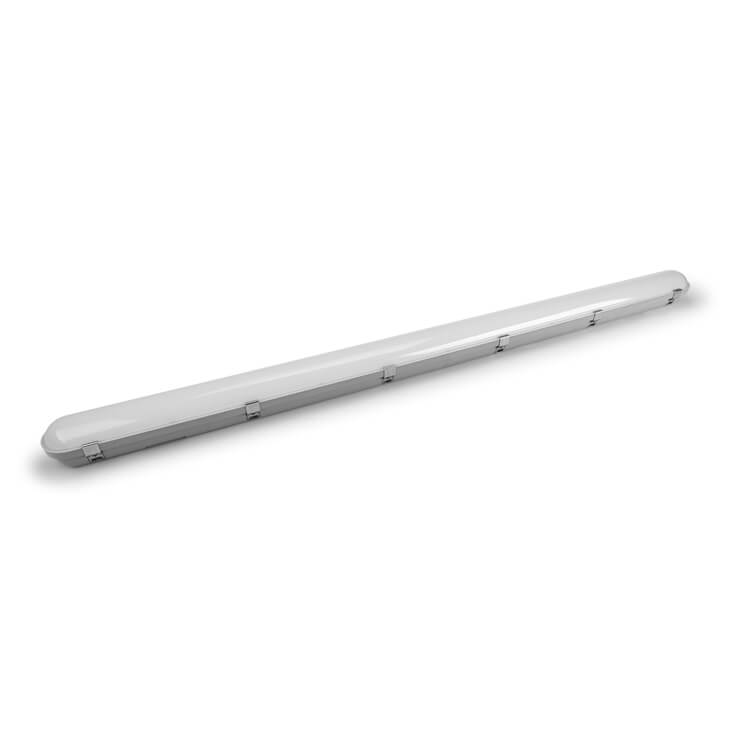

SuperONE offers a wide variety of models available in different wattages and lengths, ranging 2FT/4FT/5FT or 600mm/1200mm/1500mm. With provided accessories, these lights are easy to install, mount and maintain, and is the ideal choice for both new construction and retrofits. This high-efficacy luminaire also provides dimming options as well as sensor options to save more on your electricity bill.
SuperONE Lighting is a professional manufacturer of LED Tri-proof Light & LED Vapor Tight Light manufacturer from Shenzhen, China. With company philosophy “Driving Innovation, Delivering Value”, SuperONE is committed to delivering top-performing, energy-efficient lighting to customers & partners all over the world.

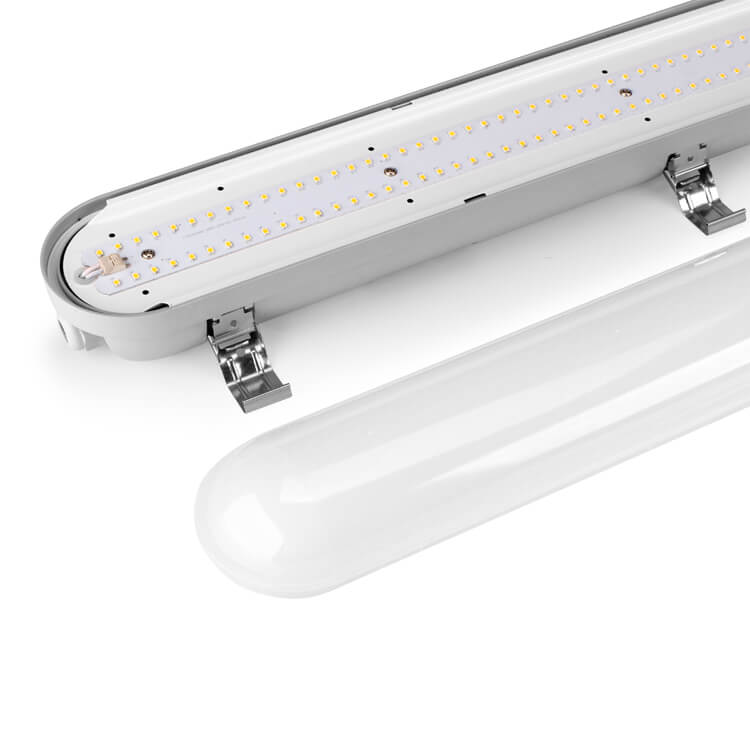

- Injection molded polycarbonate body, high resistant, RAL7035 light grey
- Anti-UV opal or transparent PC diffuser; 90% light transmittance
- Stainless steel buckles, easy to operate and tool-free maintenance
- PG13.5 waterproof glands with linkable connection design
- Single or Double wiring, backside cable output available
- Branded high lumen SMD2835 LEDs, up to 120-130lm/W overall efficacy
- AC200-240V as standard voltage or Universal AC120-277V optional
- 0-10V, PWM, DALI dimming options / Emergency available
- Ceiling Mount with brackets or Suspended Mount with metal stems
- Rated at up to 50,000 hours (at L70) and backed by a 5-year warranty
- Warehouse lighting
- Workshop lighting
- Stadium lighting
- Refrigerator lighting
- Parking garage lighting
- Gas station lighting
- Supermarket lighting
- Food & beverage lighting
- Commercial kitchen lighting
- Manufacturing facilities lighting
Classic T Series PC LED Vapor Tight Light Features
Ceiling Mount / Suspended LED Vapor Tight Fixture
The Classic T Series LED Tri-proof Light can be Ceiling or Wall Mounted with brackets and expansion screws, as well as Suspended with metal rods or wire ropes, which makes the fixture versatile for both low profile & high ceiling at indoor & outdoor areas.
Linkable LED Vapor Tight Fixture
Our unique design enables customers to link or connect those fixures in a line and run from one power source, which can save your installation wiring work. Multiple fixtures can be connected in a row to create a daisy chain system by linking one fixture to another directly, or through electric cable.
Durable LED Vapor Proof Light Fixture
When it comes to lighting, certain environments demand extra protective measures. Here’s a few reasons you can trust the our vapor tight LED light in your harsh environment.
- Single piece injection molded polycarbonate body, high resistant, 180° bendable without crack
- PG13.5 glands on two ends to make the the fixture with IP65 rating, protection from dust & water
