• Microwave Sensor UFO LED High Bay Light

100W/150W/200W Integrated Microwave Motion Sensor LED High Bay Light with Programmable Remote, CE, TUV, UL, DLC Listed, IP65 IK08 with 5 Years Warranty

  • Wattage:          100W/150W/200W
  • Lumen:            15,000lm/22,500lm/30,000lm
  • Light Source:  LUMILEDS/OSRAM/NICHIA/CREE, etc.
  • Driver:             MEAN WELL/PHILIPS/INVENTRONICS, etc.
  • CCT:                 3000k, 4000k, 5000k, 5700k, 6000k, 6500k
Motion Sensor LED High Bay Light Specifications
Input voltage AC100-277V 50/60Hz
LED Driver Constant Current LED Driver (CE/TUV/UL or Meanwell)
PF  >0.9
THD <15%
LED Type Lumileds/Samsung/Epistar SMD LED
Colour Rendering Index  Ra>80
SCDM <5
Colour Temperature 3000K, 4000K, 5000K, 5700K, 6000K, 6500K
Luminous Efficiency  150lm/W (160-180lm/W available)
Beam Angle 60°/90°/120°
Housing Material Aluminum Heatsink & PC Cover
Installation  Suspension with chain / Surface mount with bracket
IP & IK Rating  IP65 & IK08
Control  Microwave Sensor with Remote
Working Temperature  -25℃~50℃
Certificate TUV, SAA, CB, CE, RoHS
Warranty  3-Year or 5-Year
Name Model Wattage Dimension Dimension Weight
100W  Microwave Motion Sensor Round LED High Bay Light SO-UFO-MS100W 100W 15000LM Ø250*H178mm 2.1KG
150W Microwave Motion Sensor Round LED High Bay Light SO-UFO-MS150W 150W 22500LM Ø230*H180mm 2.5KG
200W MicrowaveMotion Sensor Round LED High Bay Light SO-UFO-MS200W 200W 30000LM Ø345*H183mm 3.6KG
Microwave Sensor UFO LED High Bay Light Dimension
Motion Sensor LED High Bay Light Introduction

SuperONE UFO LED Highbay light fixture, featuring with a built-in microwave sensor function for a convenient and energy saving solution, is the best performing motion sensor high bay light for 2022. The sensor is designed as an action motion detector to convert movement into electrical signal from a moving object from any direction, and it turns on the lamp at 100% brightness when people walk into the detection area, while dim the lamp to 10-50% brightness after people leave. Besides, the motion sensor can detect the movement through plastic, glass and thin non-metal materials, making the sensibility better than most of other sensor methods.

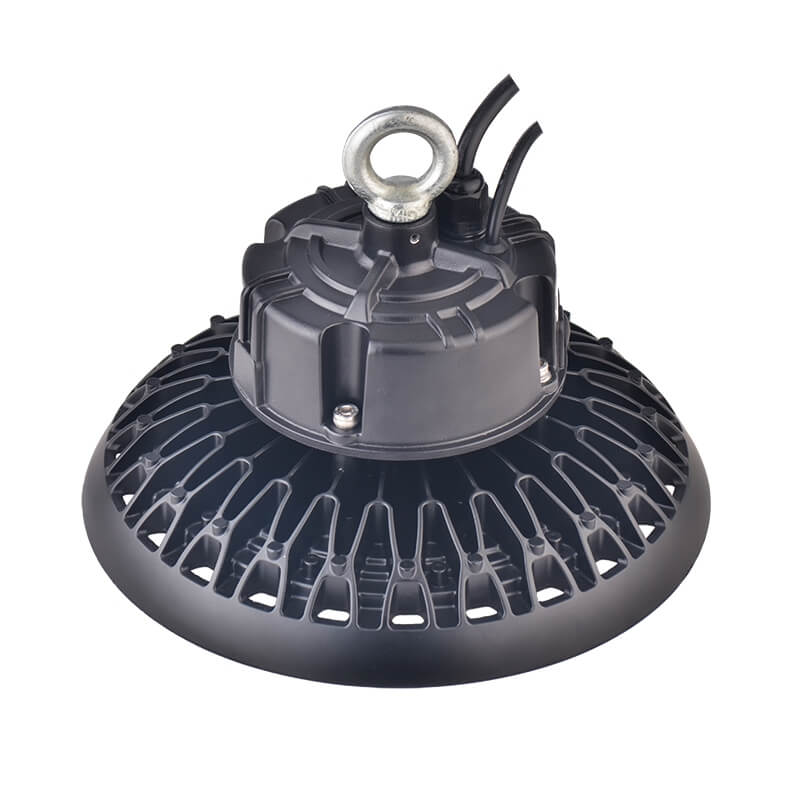

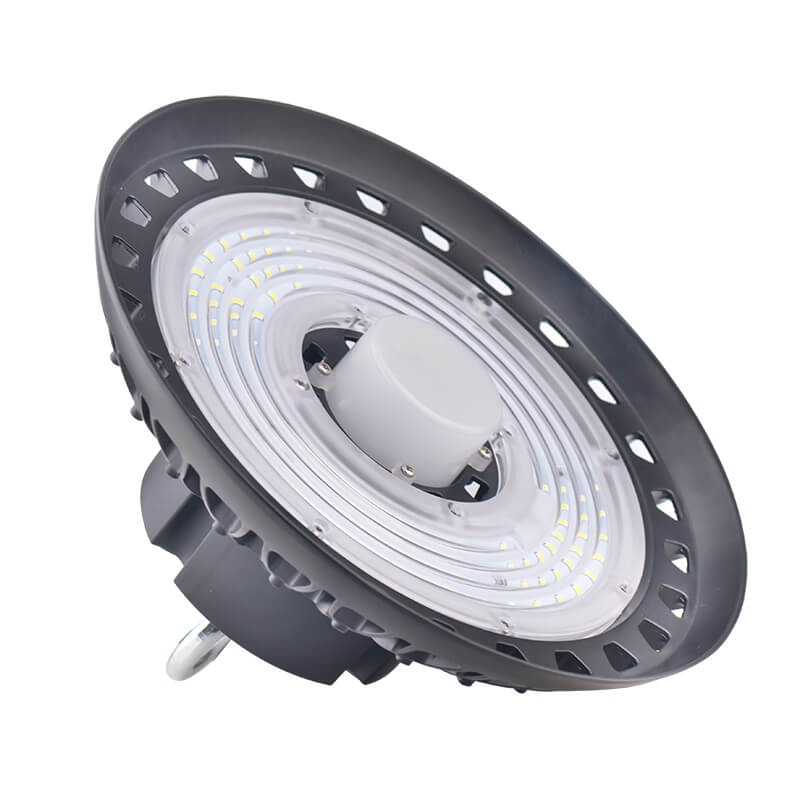

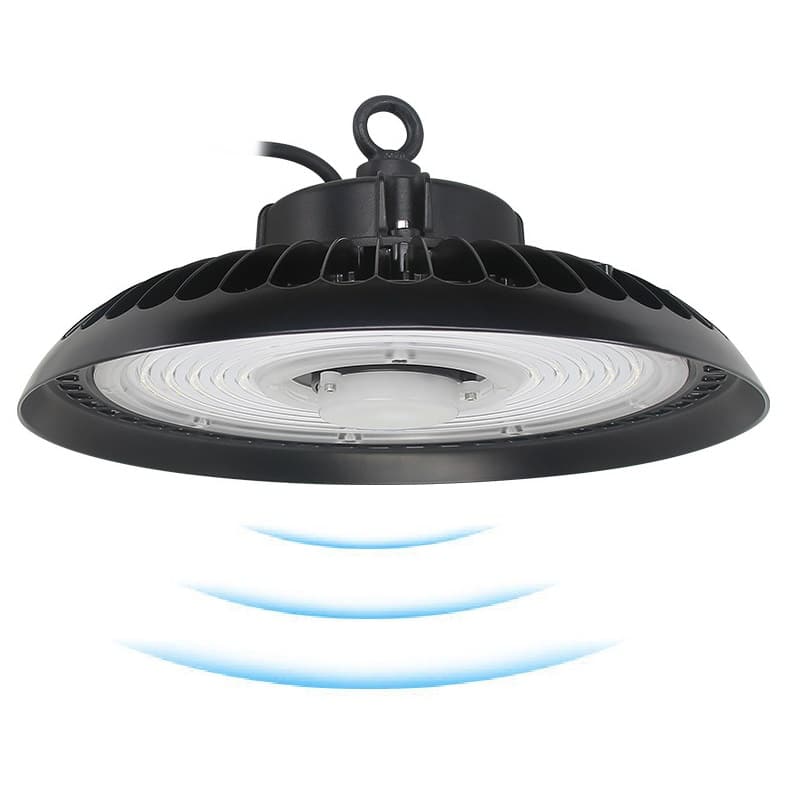

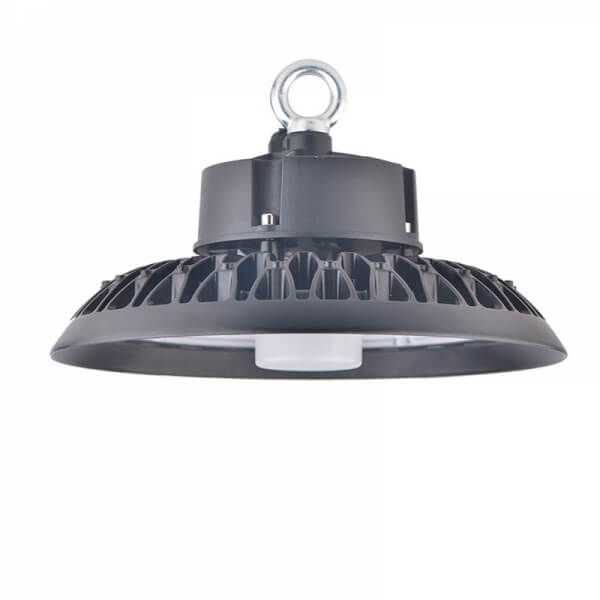

Microwave Sensor UFO LED High Bay Light

This Microwave Sensor LED High Bay is made of rigid, thickened die-casting aluminum heat-sink. With massive aluminum fins for a larger heat dissipation area, it improves heat radiation performance, and ensures stable operation of light source. As can be seen, the surface is with electrostatic spray treatment, which makes it self-cleaning and strong corrosion resistance. The optical lens is precision-engineered and manufactured with PC material, which is anti-UV, high strength & high transmittance. It can not only optimize the lux to the working plane, but also deliver a soft and non-glare light. At the same time, the glare of high bay led lighting is greatly reduced.

Those Motion Sensor LED Industrial Lights are suitable replacements for HID High-Bay luminaires with an energy saving potential of up to 60% compared to the traditonal lighting technology. They are produced in a compact and sleek design, which is weight and size optimized. The LED High Bays provide different wattages of 100W/150W/200W and various beam angles of 60°/90°/120° for mounting heights of 6m to 14m. Our high bay comes with three installations: Hook Mount, Ceiling Mount, 1/2″NPT Mount, with related accessories provided upon request. We can provides you extension cord with plug for easy and direct power sourcing if needed.

Equipped with high lumious flux SMD LEDs from famous brands like Lumileds, Osram, Cree, the Motion Sensor UFO LED High Bay Lights can achieve an overall light efficiency up to 150 lm/W. For example, the total luminous flux of 100Watts can reach 15000 lumens, which is equivalent to the traditional 450W high-pressure sodium lamp and can save energy up to 70%.  Moreover, those models have passed international safety standards like CE, ROHS and UL etc., so they can be shipped to worldwide. This high bay lighting is usually used in a large space that needs to be illuminated, especially for where there are high ceilings. The wide applicability makes high bay light the ideal luminaire for most indoor scenes, e.g., industrial places, factories, workshops, warehouses, gymnasiums, supermarkets, toll stations, and highest ceiling application.

SuperONE Lighting is a professiona China manufacturer of Microwave Motion Sensor LED High Bay Light from Shenzhen, China. If you are looking for a reliable China LED High Bay manufacturer or supplier, we will be your best choice. With company philosophy “Driving Innovation, Delivering Value”, SuperONE is committed to delivering top-performing, energy-efficient lighting to customers & partners all over the world.

Microwave Sensor UFO LED High Bay Light Structure
  • Built-in microwave motion sensor LED industrial lights with remote controller
  • 5.8GHz microwave induction highbay light with 3 working modes: ON/OFF, 2-step dimming, 3-step dimming
  • Automatic presence detection and dimming when used with 1-10V dimmable LED drivers, mounting height up to 15m.
  • Robust die-casting aluminum heat sink with excellent heat dissipation
  • High transmittance polycarbonate lens with various lighting angles: 60º /90º /120º
  • Luminous efficacy up to 150W/W with Lumileds/Osram/Cree SMD LEDs
  • 5 years warranty with Mean Well/Philips/Lifud high efficiency LED driver
  • IP65 & IK07 Rating LED high bay light for harsh environment use.
  • Warehouse lighting
  • Stadiums lighting
  • Airport hall lighting
  • Billboard lighting
  • Gymnasiums lighting
  • Assembly line lighting
  • Gas station lighting
  • Supermarket lighting
  • Shopping mall lighting
  • Manufacturing facilities lighting
Motion Sensor LED High Bay Light Features

Built-in Microwave Motion Sensor

• Built-in adjustable daylight sensor
• Automatic dimming when used in combination with 1-10Vdimmable LED drivers or ballasts.
• 1-10V interface can match up with stand-alone daylight sensor and achieve daylight harvesting.
• Detection area, time delay and daylight threshold can be precisely set via DIP switch.
• Wide detection area, range up to 16m in diameter and mounting height 15M Max. suitable for warehouse use.
• Optional mounting brackets for different application.

The active motion detectors with HF system 5.8GHz can be detected through plastic, glass and thin non-metal materials. except the higher mounting height 15m Max. The sensors allow energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.

Microwave radar sensor specification

Two-step Dimming Function

0
The LED Highbay Light will work at a low light level all the time if there is no motion detected.
0
Once motion is detected, the sensor will switch on the lamp and work at the level 100% brightness.
0
The microwave sensor will dim the lamp to the low lighting level if no motion detected afte the hold time.
Microwave radar sensor high bay remote

Free Lighting Simulation

It is troublesome  for customers to pick up suitable lights for the buildings. With all kinds of lamps on the market, customers do not know how to choose. SuperONE Lighting is a company dedicated to providing accurate lighting solutions. If you need lighting layouts, please feel free to contact us! We can provide free lighting simulation and recommendation by the most popular lighting softwares like DIALUX, AGI32, but please provide the following information.
I.       The length, width and height of the building;
II.     The use of the building;
Ill.    Your requirements.
ufo led high bay lighting dialux simulation
Microwave Sensor LED High Bay Light Download
