Halo UFO LED High Bay

  1. Home
  2. LED High Bay Light
  3. Halo UFO LED High Bay
Next
Halo UFO LED High Baysuperonelighting@gmail.com2020-08-03T02:46:31+00:00

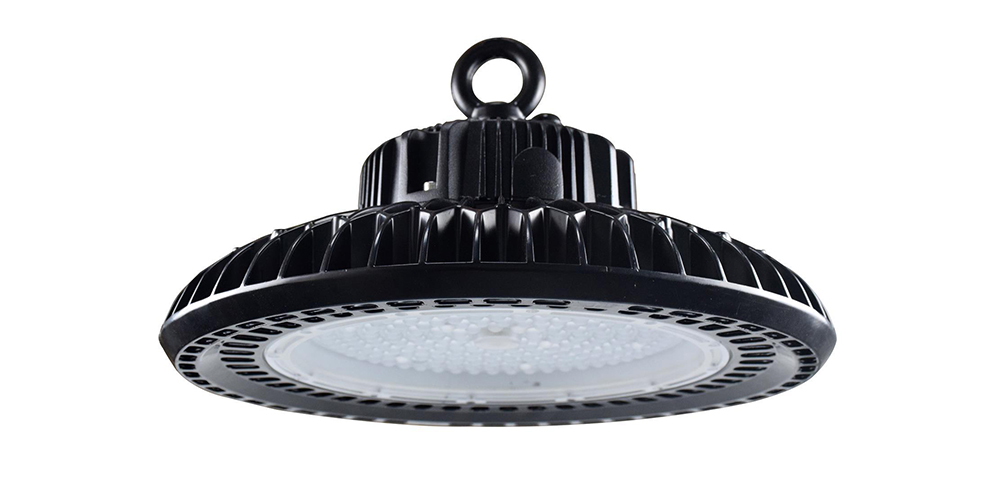

Halo UFO LED High Bay Light Meanwell Driver 140-160LPW

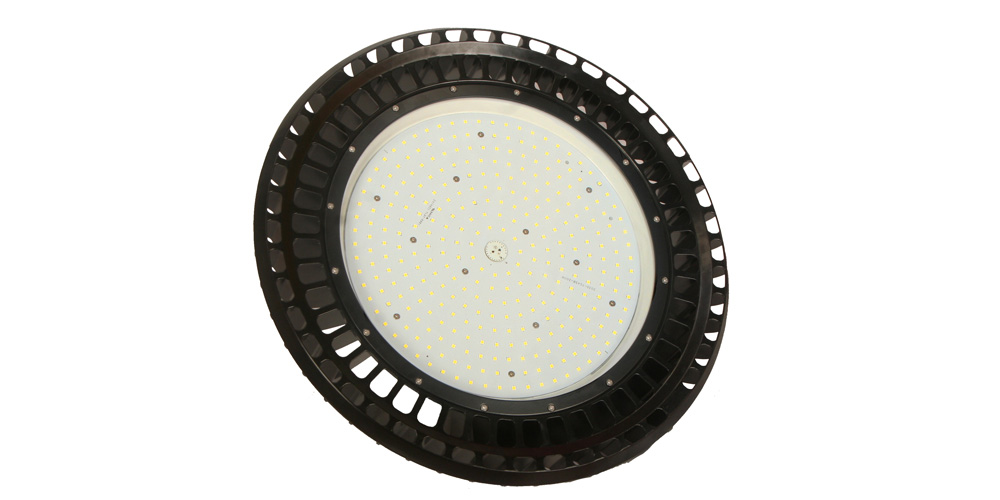

Halo UFO LED High Bay Light Meanwell Driver 160 Lumen Per Watt
  • Features

  • Specification

  • Images

  • Download

  • Features

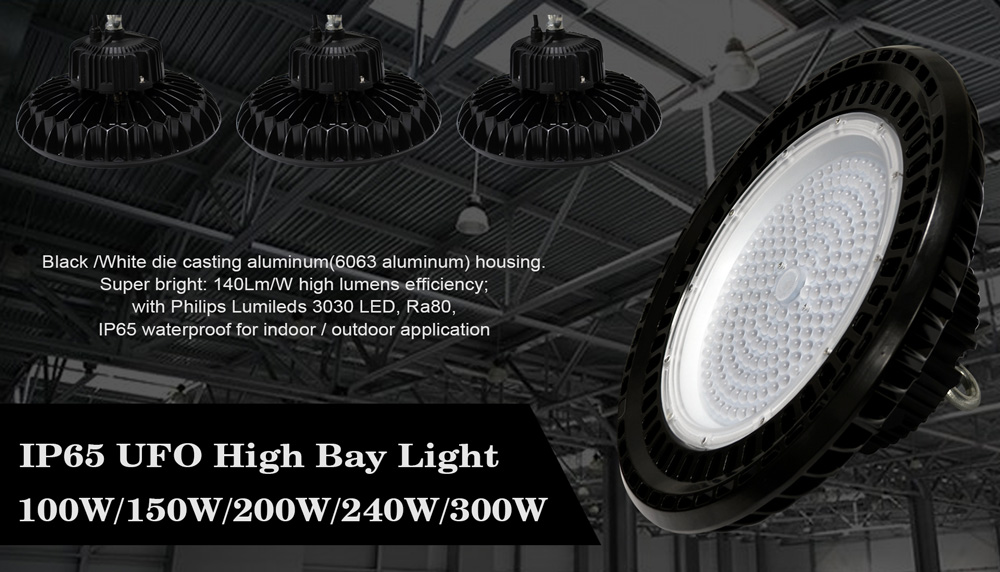

Meanwell-Driver-100W-150W-200W-240W-300W-Warehouse-UFO-LED-High-Bay-Light-with-5-Year-WarrantyHALO Series UFO LED High Bay Lights

100/120w/150W/200W/240W/300W UFO LED High Bay Lighting, 300-1500W HPS/MH High Bay Equivalent, Ultra Efficient 140-160 Lumens per Watt, Waterproof, Super Bright LED Industrial Lighting, Low Profile LED Dimmable High Bay Light with Industrial Quality with CE ROHS TUV SAA C-tick UL Certified.

Our HALO Round Highbay Lights are designed to provide wide, equally distributed light in high-ceiling interior areas such as warehouses, gymnasiums, airports, grocery stores, and other commercial and industrial spaces. They are also built to be suitable for high-temperature areas. We have a variety of options to meet your needs, including 100W, 150W, 200W, 240W and 300W models. We also offer a number of accessories for various mouunting options. Our HALO UFO LED High Bays are perfect for replacing high-intensity discharge (HID) fixtures, resulting in improved visibility and lower energy usage/costs. With a superior performance heat sink, exceptional lumen maintenance, and a rock solid housing, the Halo LED High Bay will last for many years to come.  Designed with the highest quality in mind, the HALO Series UFO LED High Bay Light combines high-end components for efficiency and superior constrution quality for reliability. Equipped with high output Philips Lumileds LED Chips and Mean Well LED driver, our LED highbay light ensures you save on both energy and maintenance costs while meeting the highest performance standards. Ranging from 100W-300W, the HALO Series UFO LED High Bay Light is designed to replace 300W~1500W metal halide lamp for warehouse lighting, sports lighting, workshop lighting, retail lighting, supermarket lighting and gym lighting etc.

  • Compact die-casting alumium heat sink with excellent thermal management
  • Unique appearance, strong construction, resistant to impact and seismic activities
  • Smooth electrophoresis surface treatment finish with stainless hardware
  • Excellent resistance to corrosion, UV degradation and abrasion
  • Philips Lumileds Luxeon 3030 LED with high efficacy up to 140Lm/W
  • LED Lifetime >50000hrs, CRI>80, 3000k/4000K/5000K/6000K CCT with LM80
  • Low Tj for best lumen depreciation and extended life span
  • IP67 Meanwell HBG LED Driver with 90~305VAC input and 5 years warranty
  • Short circuit, over current, over voltage, over temperature protection
  • Integrated thread with eyelet for hook, pendant, or suspension installation
  • Optional adjustable yoke bracket for surface mount options
  • Various optical design with 60°/90° PC lens and 120° with tempered glass
  • IP65 UFO LED highbay suitable for both indoor & outdoor applications
  • Dimmable availabe,1~10v, DALI dimmable, PWM signal UFO LED Highbay Light
  • 3-step dimming function by motion sensor is available upon request
  • CE & RoHS certificates, UL standard available, working worldwide

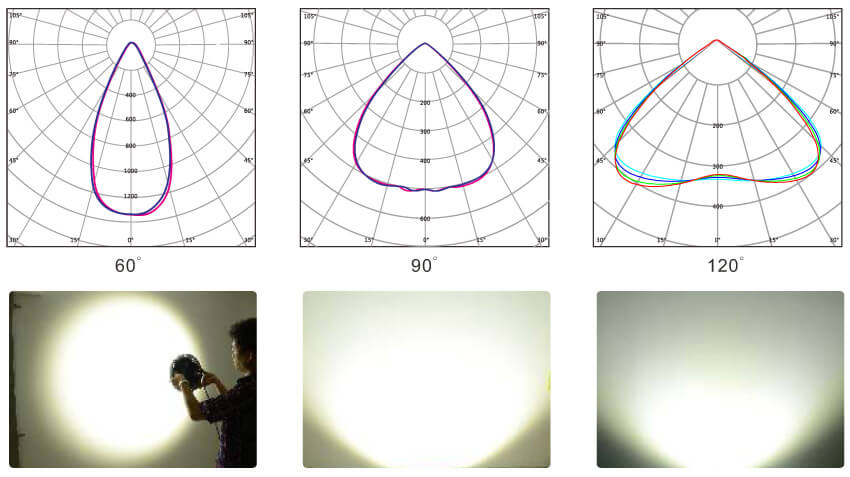

UFO LED High Bay Light Beam Angle: 60°/90°/120°UFO LED High Bay Light Beam Angle

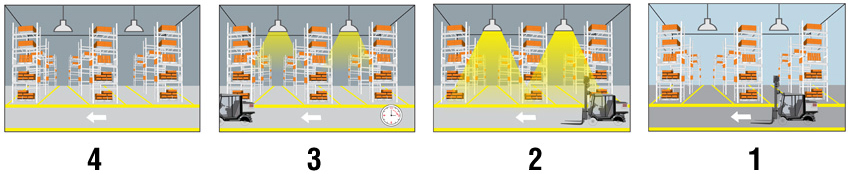

UFO LED High Bay Light Microwave Sensor IllustrationUFO LED High Bay Light Motion Sensor

LED High Bay Light Benefits LED High Bay Light Applications
  • Replacement for traditional high-bay luminaires
  • Saving 70% energy compared to traditional light
  • Super bright LED source with high LPW>140lm/W
  • 50000hrs LED lifetime, 10 times than traditional MH
  • LED technology no replacement and maintenance
  • No UV, no mercury, eco-friendly to environment
  • Exclusive design with optimized size and weight
  • Aluminum alloy construction, strong & shockproof
  • CE & RoHS certificates, UL standard available
  • 3-5 years warranty, free replacement with no cost
  • Warehouse lighting
  • Stadiums lighting
  • Airport hall lighting
  • Billboard lighting
  • Gymnasiums lighting
  • Assembly line lighting
  • Gas station lighting
  • Supermarket lighting
  • Shopping mall lighting
  • Manufacturing facilities lighting
  • Specification

Model No.SO-UFO-H100WSO-UFO-H150WSO-UFO-H200WSO-UFO-H240W
Input VoltageAC90-305V 50/60Hz
Output VoltageDC30-42V
PF>0.95
Power Consumption100W150W200W240W
LEDPhilips 3030 SMD LED
LED Lifetime>50000 hours
CCT3000K/4000K/5000K
CRIRa>80
Lumionous Efficacy130-140lm/W (160lm/W availble)
Luminous Flux13000-14000lm19500-21000lm26000-28000lm31200-33600lm
Beam Angle120° Tempered Glass / 60° & 90° PC Lens
Main MaterialAluminum + Tempered Glass / PC Lens
Shell ColorBlack
DimensionsD280xH185mmD320xH180mmD320xH180mmD400xH208mm
Weight3.8KG5.0KG5.0KG6.0KG
IP RatingIP65
MountingEyelet for Hook and Chain / Bracket for Surface Mount
Working Temperature-20℃~45℃
Storage Temperature-30℃~50℃
Humidity15%-90%RH
PackingPlain Box
CertificationCE RoHS
  • Images

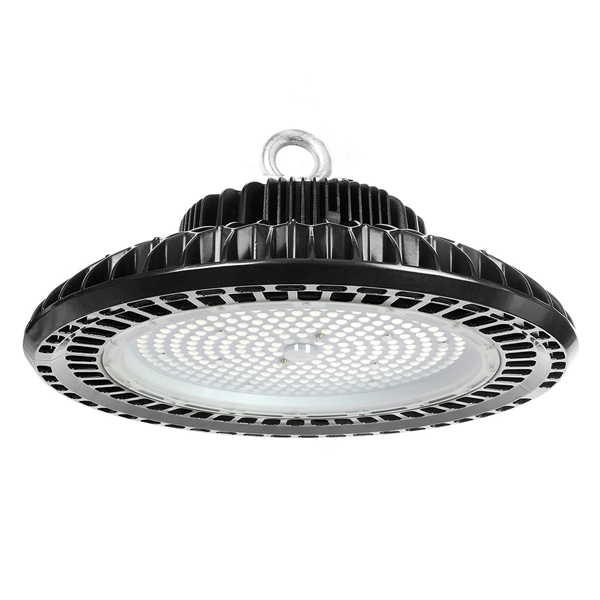

Halo UFO LED High Bay Light 160LPW Black Ring

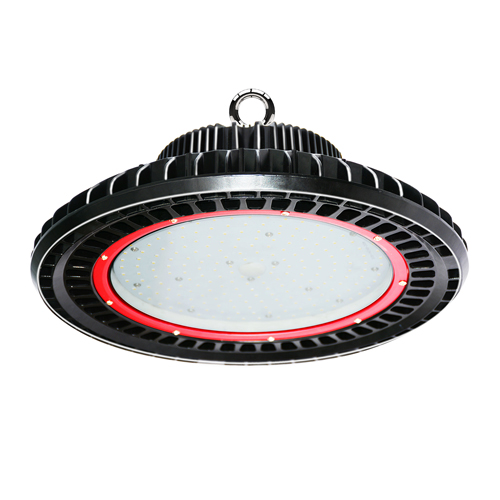

Halo UFO LED High Bay Light 160LPW Red Ring

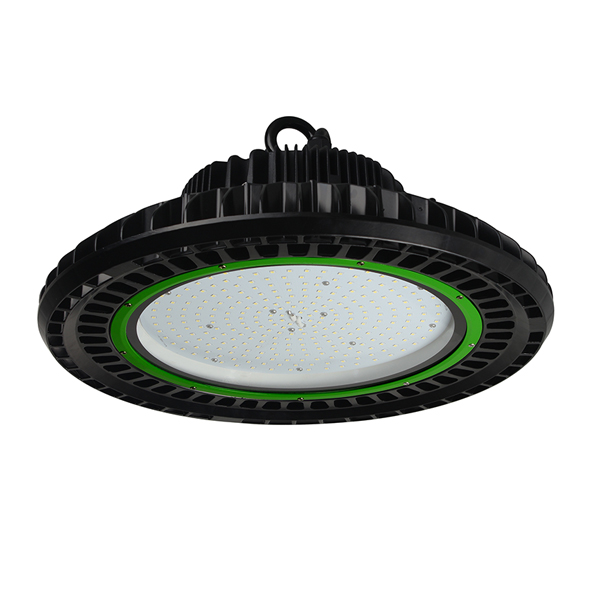

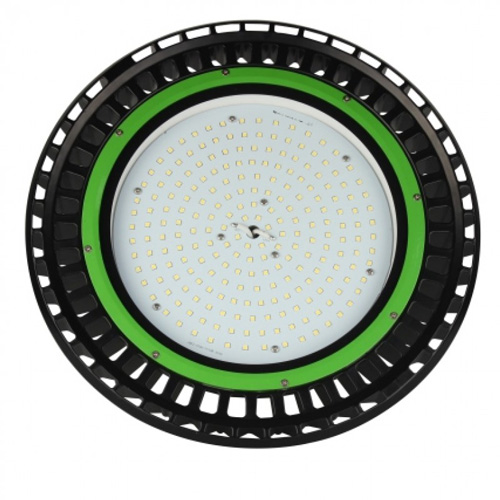

Halo UFO LED High Bay Light 160LPW Green Ring

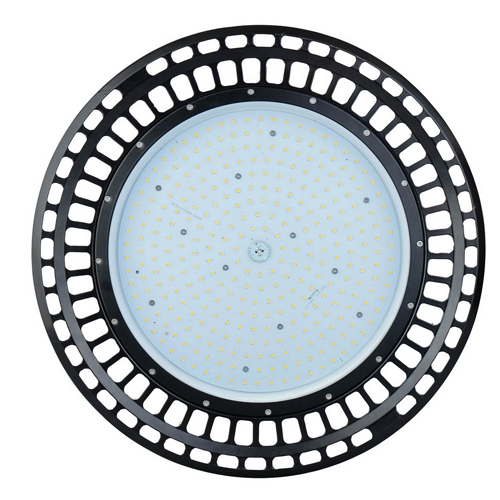

ring black
ring red
ring green
Halo UFO LED High Bay Light 100W with Meanwell Dimmable Driver

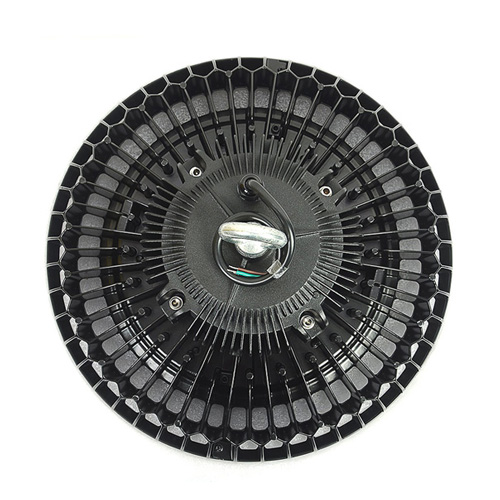

Halo UFO LED High Bay Light Backside View

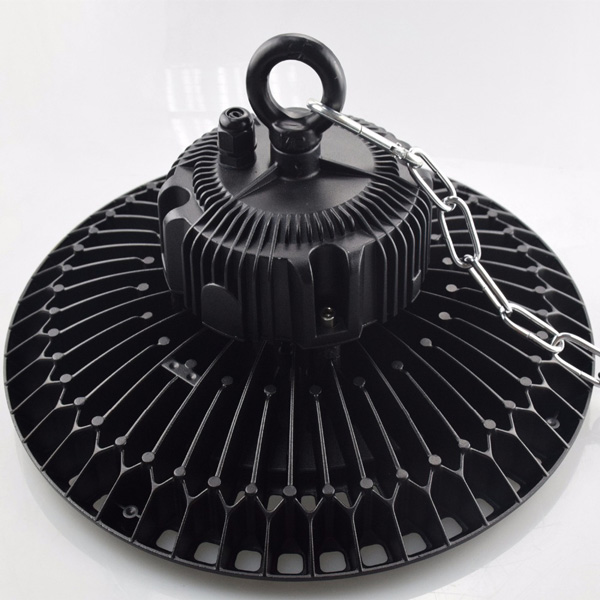

Halo UFO LED High Bay Light 100W with Chain

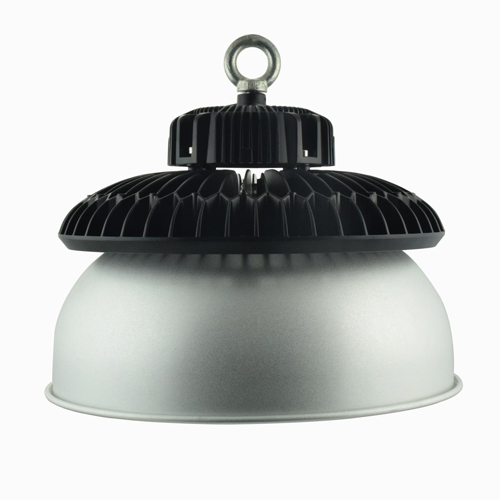

Halo UFO LED High Bay Light 140-160LPW with Lampshade

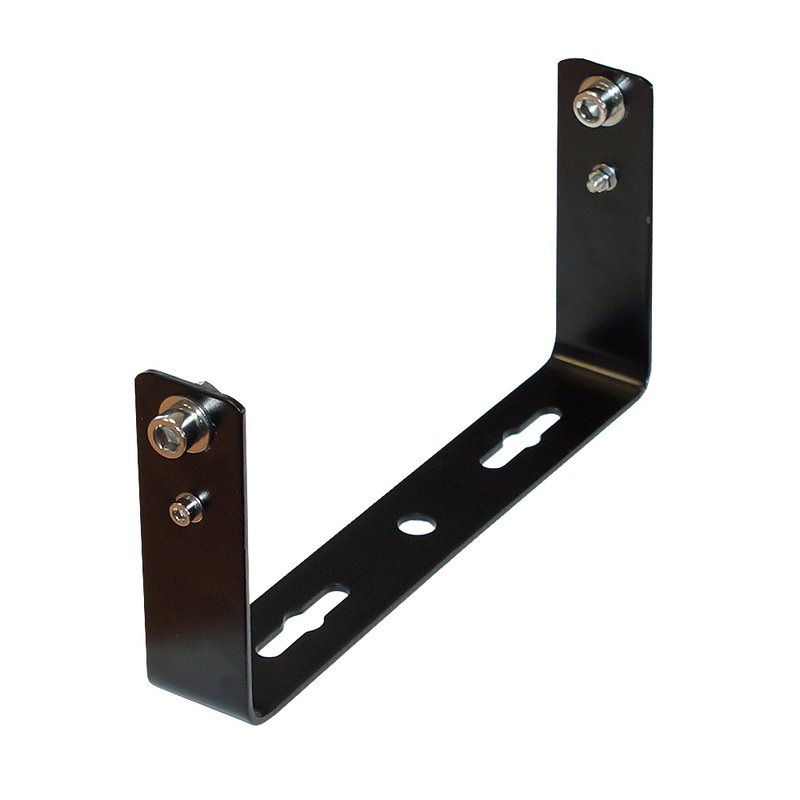

UFO LED Highbay Support Bracket
  • Download

SuperONE UFO LED Highbay Halo Series Brochure

Related Projects

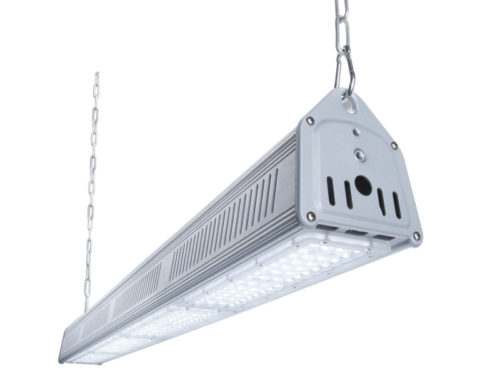

Module Linear LED High Bay

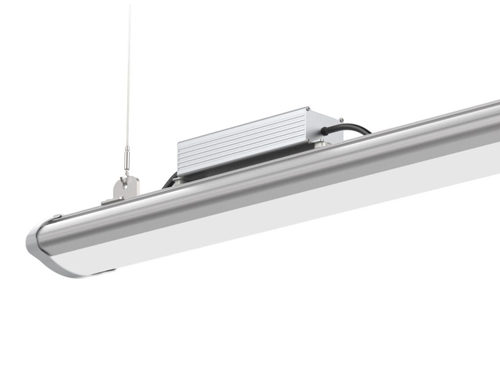

Apollo Linear LED High Bay

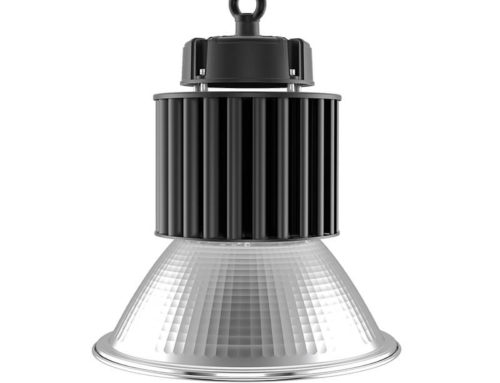

Reflecto LED High Bay

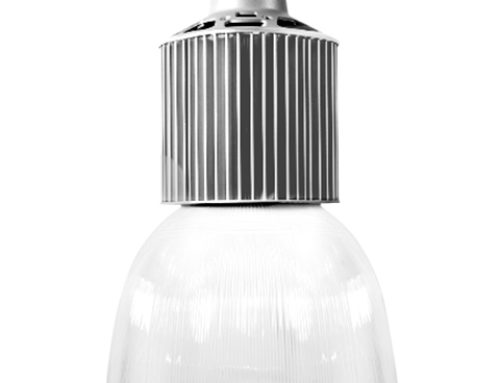

Enlight LED High Bay

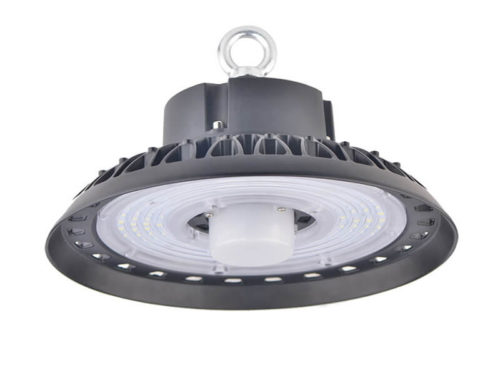

Sensor UFO LED High Bay
